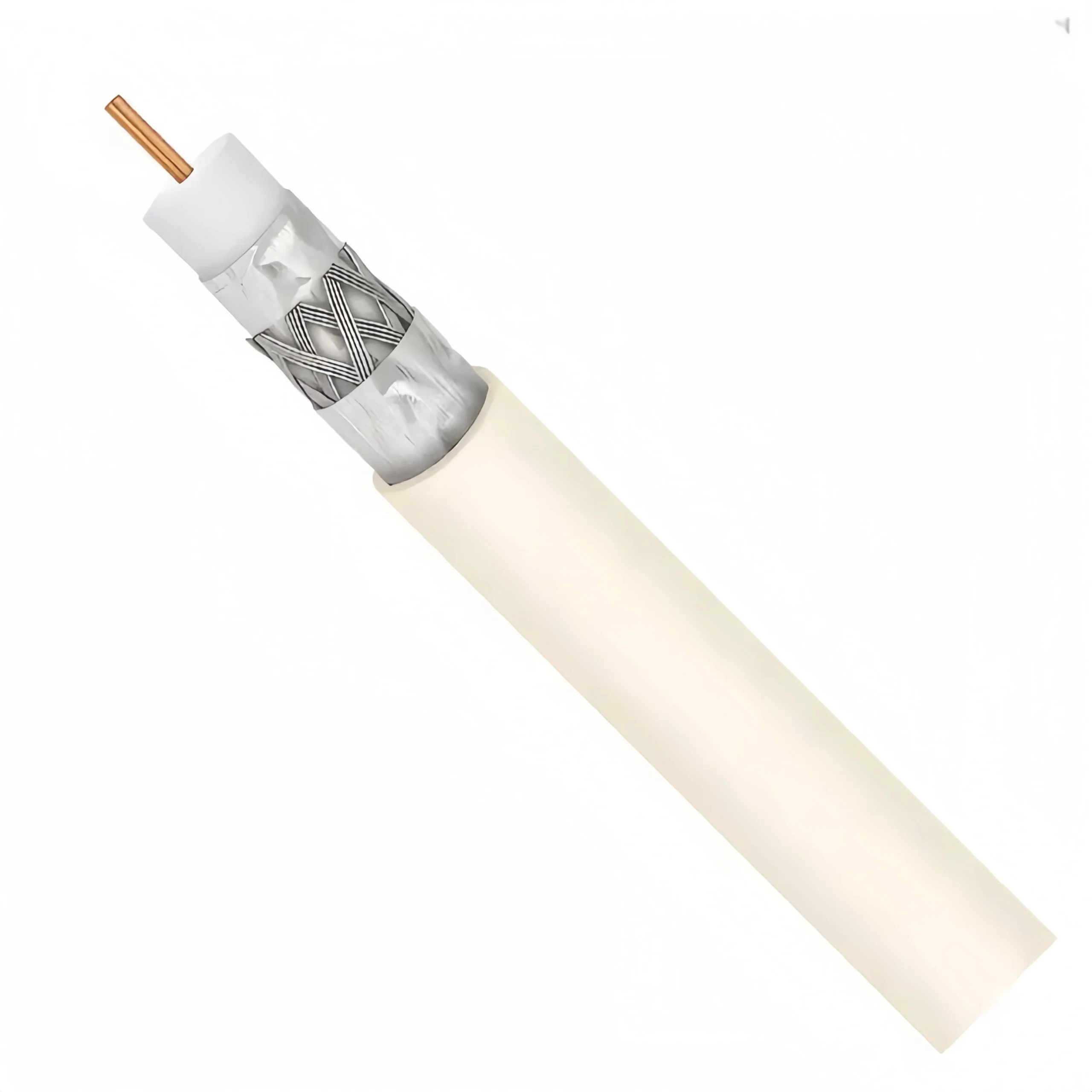

RG6/U Tri-Shield CMP is a 75-ohm coaxial cable designed for high-performance signal transmission in plenum spaces, featuring triple shielding for superior EMI/RFI protection and a CMP-rated low-smoke, fire-resistant jacket for maximum safety. Ideal for CATV, satellite, broadband, and security applications, this cable meets strict fire and building codes, making it suitable for air-handling spaces in commercial and residential buildings.

Key Features

1. CMP-Rated Jacket for Plenum Installations

• CMP (Plenum) rated per NFPA 262 and UL 910 for use in air-handling spaces.
• Low-smoke, fire-retardant materials reduce toxic emissions and improve safety.
• Required for commercial buildings, hospitals, schools, and high-rise structures.

2. Triple Shielding for Maximum Signal Protection

• Three-layer shielding (Aluminum foil + Aluminum braid + Additional aluminum foil) ensures exceptional EMI/RFI rejection.
• Prevents signal interference in high-density environments.
• Enhances HDTV, broadband, and satellite signal clarity.

3. 75-Ohm Impedance for High-Frequency Applications

• Optimized for CATV, HDTV, broadband internet, and satellite communications.
• Supports frequencies up to 3 GHz for high-definition video and high-speed data transfer.
• Low signal loss ensures stable, long-distance performance.

4. Durable Copper-Clad Steel (CCS) Conductor

• 18 AWG CCS core provides structural strength and cost efficiency.
• Maintains excellent signal integrity and long-distance performance.

5. High-Security, Low-Smoke Jacket

• Made from flame-retardant, low-smoke materials for compliance with strict building codes.
• Suitable for plenum spaces such as ceilings, ducts, and ventilation areas.
• Enhances fire safety in public and commercial buildings.

Technical Specifications

Parameter	Specification
Conductor Material	Copper-Clad Steel (CCS)
Conductor Diameter	18 AWG (1.02 mm)
Impedance	75 Ohms ± 3 Ohms

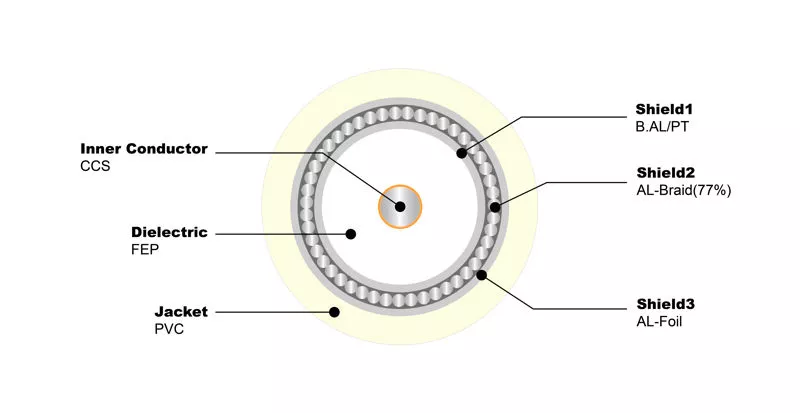

Shielding	Triple Shielding (Al Foil + Al Braid + Al Foil)
Dielectric Material	Foamed Polyethylene (FPE)
Jacket Type	CMP-Rated (Plenum)
Outer Diameter	~6.86 mm (0.27 inches)
Frequency Range	Up to 3 GHz
Attenuation (Signal Loss)	~5.65 dB/100m @ 1 GHz
Fire Safety Compliance	UL 910, NFPA 262, NEC CMP Rating
Operating Temperature	-20°C to +75°C (-4°F to +167°F)

Applications

✔ Plenum Installations – Designed for air-handling spaces in commercial and residential buildings.
✔ CATV & HDTV Systems – Delivers high-quality digital and high-definition TV signals.
✔ Broadband & Satellite Communications – Supports high-speed internet and satellite TV.
✔ Security & Surveillance – Ideal for CCTV and video transmission networks.

Why Choose RG6/U Tri-Shield CMP?

✅ CMP-Rated Jacket – Fire-resistant for safe plenum installations.
✅ Triple Shielding – Superior EMI/RFI protection.
✅ High-Frequency Performance – Supports up to 3 GHz for modern applications.
✅ Durable & Safe – Meets strict building codes and fire safety standards.

Conclusion

RG6/U Tri-Shield CMP is a premium fire-rated coaxial cable designed for plenum applications where safety and performance are critical. With triple shielding, a 75-ohm impedance, and a CMP-rated jacket, it ensures secure, interference-free signal transmission for CATV, satellite, broadband, and security networks in commercial and high-rise buildings.
