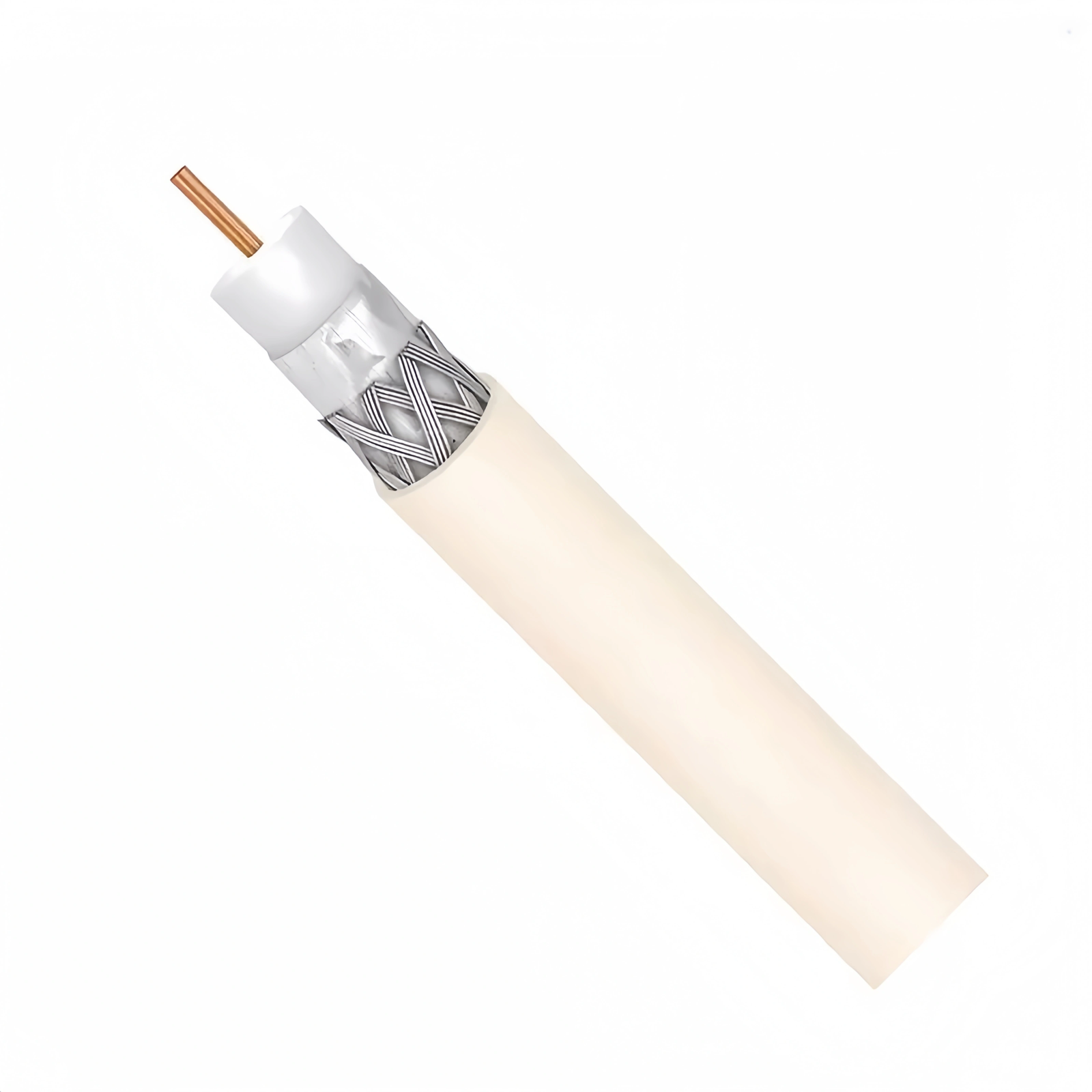

RG6/U S CMP Coaxial Cable – High-Performance Plenum-Rated Solution

RG6/U S CMP coaxial cable is a high-quality, quad-shielded, plenum-rated cable designed for signal transmission in commercial and residential buildings. It meets CMP (Communications Plenum) fire safety standards, making it suitable for installation in air-handling spaces such as ceilings, raised floors, and ductwork. The cable is ideal for CATV, satellite TV, broadband internet, and surveillance systems, ensuring low signal loss, high shielding effectiveness, and long-term durability.

Key Features

1. Plenum-Rated Fire Safety (CMP Certified)

• Designed for use in air-handling spaces where fire safety is critical.
• CMP-rated jacket meets stringent NFPA 262 and UL 910 fire standards, ensuring low smoke and flame propagation.
• Ideal for commercial buildings, office complexes, hotels, hospitals, and data centers.

2. Quad-Shielded for Maximum Interference Protection

• Quad-shielding (two layers of aluminum foil + two layers of aluminum braid) provides superior protection against radio frequency interference (RFI) and electromagnetic interference (EMI).
• Enhances signal clarity and stability, making it suitable for high-frequency applications up to 3 GHz.

3. High-Performance Conductor for Reliable Signal Transmission

• Available with a solid copper or copper-clad steel (CCS) conductor:
  • Solid Copper: Best conductivity, superior signal integrity, and minimal signal loss, ideal for long-distance runs.
  • Copper-Clad Steel (CCS): Cost-effective with sufficient conductivity for standard installations.
• Low-loss dielectric insulation (foamed polyethylene, FPE) minimizes signal attenuation and supports high-frequency signals.

4. Durable, Fire-Retardant Outer Jacket

• Made from plenum-rated PVC (polyvinyl chloride) or FEP (fluorinated ethylene propylene) for high-temperature resistance and low-smoke emission in case of fire.
• Resistant to abrasion, moisture, and environmental factors, ensuring long-term reliability.

5. Supports High-Frequency Applications

• 75 Ohm impedance for efficient signal transmission.
• Supports frequencies up to 3 GHz, suitable for modern broadband, digital TV, and satellite applications.

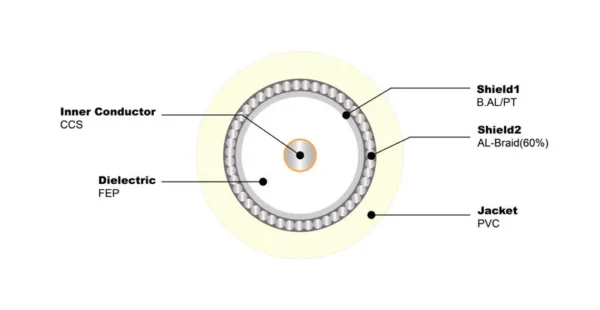

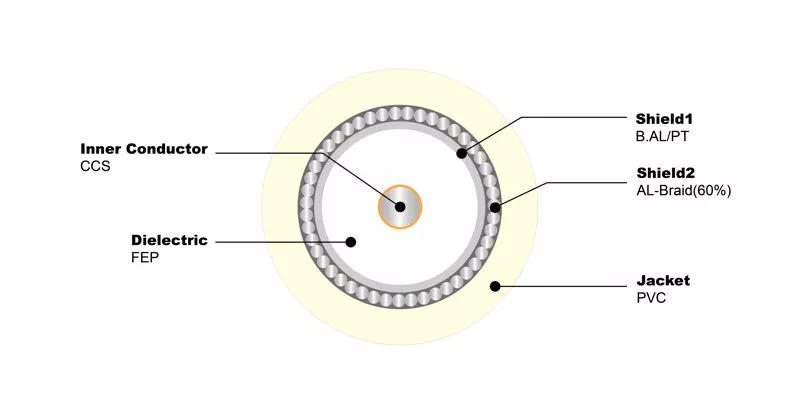

Technical Specifications

Parameter	Specification
Conductor Material	Solid Copper / Copper-Clad Steel (CCS)
Conductor Diameter	18 AWG (1.02 mm)
Impedance	75 Ohms ± 3 Ohms
Shielding Type	Quad Shielded (Aluminum Foil + Braid)
Dielectric Insulation	Foamed Polyethylene (FPE)
Jacket Material	CMP-Rated PVC or FEP (Flame-Retardant)
Outer Diameter	Approx. 6.86 mm (0.27 inches)
Frequency Range	Up to 3 GHz
Attenuation (Signal Loss)	~5.65 dB/100m @ 1 GHz
Operating Temperature	-20°C to +60°C (-4°F to +140°F)
Compliance Standards	UL 910, NFPA 262, NEC Article 800 (CMP)

Applications

✔ Indoor Plenum Spaces – Safe for use in air ducts, ceiling spaces, and raised floors in commercial and institutional buildings.
✔ CATV & Satellite TV – Ensures high-quality signal transmission for cable television, satellite systems, and HDTV.
✔ Broadband & Internet Services – Ideal for high-speed internet, modem connections, and data distribution networks.
✔ Security & Surveillance Systems – Used in CCTV, security cameras, and video transmission requiring low signal loss and interference protection.
✔ Professional A/V Installations – Suitable for home theaters, broadcast facilities, and studio-grade audio/video applications.

Why Choose RG6/U S CMP?

✅ CMP Plenum Rating – Ensures compliance with fire safety standards for indoor structured cabling.
✅ Superior Signal Performance – Low attenuation, minimal interference, and reliable data transmission.
✅ Long-Term Durability – Robust construction with high-quality shielding and fire-resistant jacket.
✅ Versatile Applications – Supports modern digital and broadband communication networks.

Conclusion

RG6/U S CMP is a premium, high-performance coaxial cable designed for safe indoor installations in commercial and high-rise buildings. With its quad shielding, plenum-rated jacket, and high-frequency capabilities, it is an ideal choice for CATV, broadband, satellite, and security applications.
