RG6/U Quad-Shield CMP Coaxial Cable – Fire-Rated for Plenum Installations

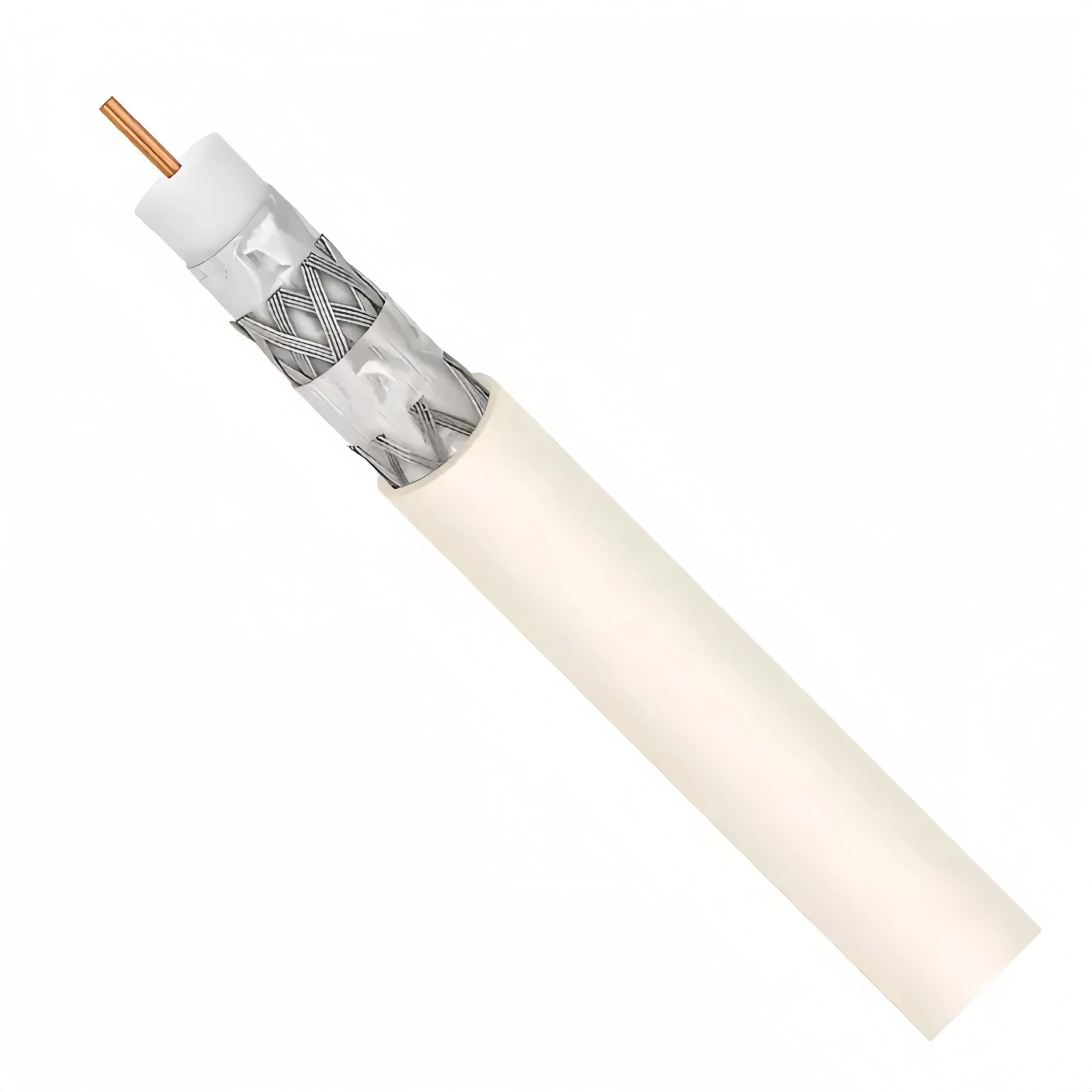

RG6/U Quad-Shield CMP is a 75-ohm coaxial cable engineered for high-performance signal transmission in plenum-rated environments, featuring quad shielding for maximum EMI/RFI protection and a CMP-rated low-smoke, fire-resistant jacket for compliance with strict building codes. This cable is ideal for CATV, satellite, broadband, and security applications in commercial and residential buildings.
Key Features
1. CMP-Rated Jacket for Safe Plenum Installations
- CMP (Plenum) rated per NFPA 262 and UL 910 for use in air-handling spaces.
- Low-smoke, fire-retardant materials reduce toxic emissions and improve safety.
- Required for commercial buildings, hospitals, schools, and high-rise structures.
2. Quad Shielding for Maximum Signal Protection
- Four-layer shielding (Aluminum foil + Aluminum braid + Aluminum foil + Aluminum braid) ensures exceptional EMI/RFI rejection.
- Prevents signal interference in high-density environments.
- Enhances HDTV, broadband, and satellite signal clarity.
3. 75-Ohm Impedance for High-Frequency Applications
- Optimized for CATV, HDTV, broadband internet, and satellite communications.
- Supports frequencies up to 3 GHz for high-definition video and high-speed data transfer.
- Low attenuation ensures stable, long-distance performance.
4. Durable Copper-Clad Steel (CCS) Conductor
- 18 AWG CCS core provides structural strength and cost efficiency.
- Maintains excellent signal integrity and long-distance performance.
5. High-Security, Low-Smoke Jacket
- Made from flame-retardant, low-smoke materials for compliance with strict building codes.
- Suitable for plenum spaces such as ceilings, ducts, and ventilation areas.
- Enhances fire safety in public and commercial buildings.
Technical Specifications

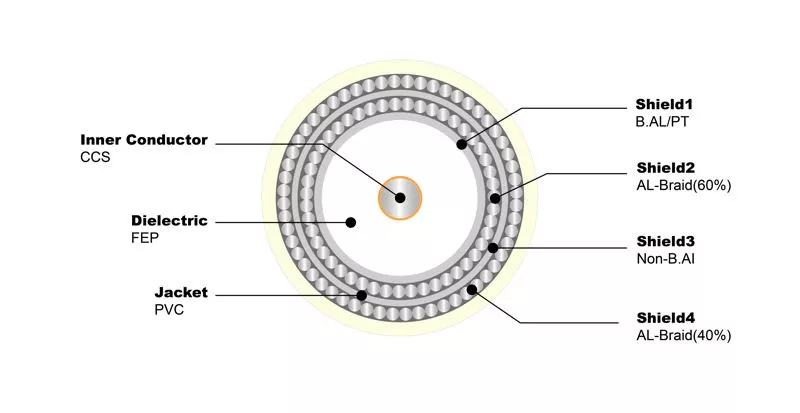

Parameter | Specification |
Conductor Material | Copper-Clad Steel (CCS) |
Conductor Diameter | 18 AWG (1.02 mm) |
Impedance | 75 Ohms ± 3 Ohms |
Shielding | Quad Shield (Al Foil + Al Braid + Al Foil + Al Braid) |
Dielectric Material | Foamed Polyethylene (FPE) |
Jacket Type | CMP-Rated (Plenum) |
Outer Diameter | ~6.86 mm (0.27 inches) |
Frequency Range | Up to 3 GHz |
Attenuation (Signal Loss) | ~5.65 dB/100m @ 1 GHz |
Fire Safety Compliance | UL 910, NFPA 262, NEC CMP Rating |
Operating Temperature | -20°C to +75°C (-4°F to +167°F) |
Applications
✔ Plenum Installations – Designed for air-handling spaces in commercial and residential buildings.
✔ CATV & HDTV Systems – Delivers high-quality digital and high-definition TV signals.
✔ Broadband & Satellite Communications – Supports high-speed internet and satellite TV.
✔ Security & Surveillance – Ideal for CCTV and video transmission networks.
Why Choose RG6/U Quad-Shield CMP?
✅ CMP-Rated Jacket – Fire-resistant for safe plenum installations.
✅ Quad Shielding – Superior EMI/RFI protection.
✅ High-Frequency Performance – Supports up to 3 GHz for modern applications.
✅ Durable & Safe – Meets strict building codes and fire safety standards.
Conclusion
RG6/U Quad-Shield CMP is a premium fire-rated coaxial cable designed for plenum applications where safety and performance are critical. With quad shielding, a 75-ohm impedance, and a CMP-rated jacket, it ensures secure, interference-free signal transmission for CATV, satellite, broadband, and security networks in commercial and high-rise buildings.
Attenuation(20℃) | | |
Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
1 | 0.42 | 1.38 |
10 | 0.96 | 3.11 |
50 | 1.6 | 5.25 |
100 | 2.2 | 7.21 |
200 | 3.2 | 10.49 |
400 | 4.7 | 15.41 |
700 | 6.6 | 21.64 |
900 | 7.9 | 25.9 |
1000 | 8.2 | 26.89 |
1200 | 8.8 | 28.85 |
1450 | 10.10 | 33.11 |
1800 | 11.80 | 38.69 |
2200 | 13.50 | 44.26 |
3000 | 16.50 | 54.1 |
