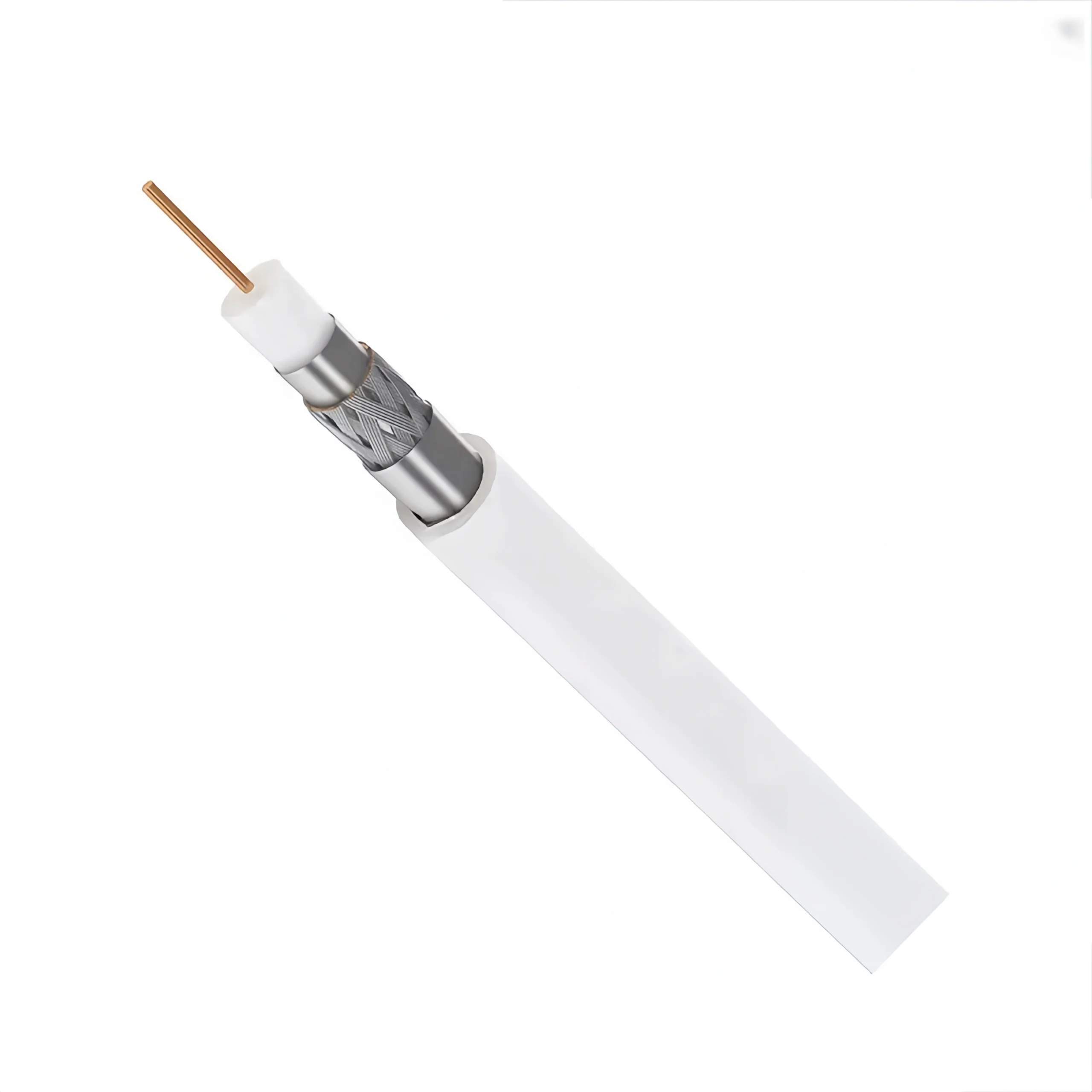

RG6 Tri-Shield PVC CM is a high-performance 75-ohm coaxial cable featuring triple shielding for enhanced signal protection and a CM-rated PVC jacket for safe indoor use. It supports CATV, satellite, broadband, and security systems, ensuring reliable, low-loss transmission up to 3 GHz.
| Brand | National Wire Cable / OEM & ODM |
|---|---|
| Model | RG6 Tri |
| Place of Origin | Guangdong, China |
| Categories | Coaxial Cable |
| Impedance | 75 ohm |
| Length | 100m, 305m,500m,1000ft |
| Packing | Roll, Wooden Spool, Carton, Pallet |
| Delivery Time | Normally 15 working days |
The RG6 Tri-Shield PVC CM is a high-performance 75-ohm coaxial cable featuring triple shielding for superior signal integrity and PVC CM-rated jacket for safe in-wall installation. Designed for CATV, HDTV, satellite, and broadband applications, this cable ensures minimal signal loss and protection against interference, making it ideal for residential and commercial use.
| Parameter | Specification |
|---|---|
| Conductor Material | Copper-Clad Steel (CCS) |
| Conductor Diameter | 18 AWG (1.02 mm) |
| Impedance | 75 Ohms ± 3 Ohms |
| Shielding | Triple Shielding (Al Foil + Al Braid + Al Foil) |
| Dielectric Material | Foamed Polyethylene (FPE) |
| Jacket Type | CM-Rated PVC |
| Outer Diameter | ~6.86 mm (0.27 inches) |
| Frequency Range | Up to 3 GHz |
| Attenuation (Signal Loss) | ~5.65 dB/100m @ 1 GHz |
| Compliance | UL 1685, NEC CM Rating |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
✔ Residential & Commercial Installations – Safe for in-wall use in homes, offices, and buildings.
✔ Cable TV & HDTV Systems – Ensures high-quality CATV and digital television signals.
✔ Satellite & Broadband Internet – Supports high-speed internet and satellite connections.
✔ Security & Surveillance – Reliable for CCTV and video surveillance networks.
✅ Triple Shielding – Maximum protection against EMI/RFI interference.
✅ CM-Rated Jacket – Safe for in-wall installations in homes and offices.
✅ High-Frequency Performance – Supports up to 3 GHz for modern applications.
✅ Durable & Cost-Effective – CCS conductor provides long-distance performance.
The RG6 Tri-Shield PVC CM is a high-quality, interference-resistant coaxial cable designed for indoor installations. With triple shielding, 75-ohm impedance, and a CM-rated PVC jacket, it is the ideal choice for CATV, satellite, broadband, and security applications in homes and businesses.
| Attenuation(20℃): | ||
|---|---|---|
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
| 5 | 0.58 | 1.90 |
| 55 | 1.60 | 5.25 |
| 83 | 1.95 | 6.40 |
| 187 | 2.85 | 9.35 |
| 211 | 3.05 | 10.00 |
| 250 | 3.30 | 10.82 |
| 300 | 3.55 | 11.64 |
| 350 | 3.85 | 12.63 |
| 400 | 4.15 | 13.61 |
| 450 | 4.40 | 14.43 |
| 500 | 4.66 | 15.29 |
| 550 | 4.90 | 16.08 |
| 600 | 5.10 | 16.73 |
| 750 | 5.65 | 18.54 |
| 865 | 6.10 | 20.01 |
| 1000 | 6.55 | 21.49 |
| Similar Type: | ||||||
|---|---|---|---|---|---|---|
| Cond.Type &Nom.D.C.R | Shielding | Shielding& %Coverage | Jacket Type | Nom. Capacitance | Nom.Imp.Ω | |
| RG6 Tri 77% Jelly PE | 18AWG (Solid)CCS 87Ω/km | B.Al/PET | Al-Braid 77%+Jelly | PE | 52±3pF/m | 75±3Ω |
| RG6 Tri 77% PVC (CMR orCMG) | 18AWG (Solid)CCS 87Ω/km | B.Al/PET | Al-Braid 77% | PVC (CMR or CMG) | 52±3pF/m | 75±3Ω |
| RG6 Tri 77% PVC CMP | 18AWG (Solid)CCS 87Ω/km | B.Al/PET | Al-Braid 77% | PVC CMP | 52±3pF/m | 75±3Ω |
| RG6 Tri 77% Jelly PE | 18AWG (Solid)BC 21.5 Ω/km | B.Al/PET | Al-Braid 77%+Jelly | PE | 52±3pF/m | 75±3Ω |
| RG6 Tri 77% PVC Economy | 18AWG (Solid)BC 21.5 Ω/km | B.Al/PET | Al-Braid 77% | PVC | 52±3pF/m | 75±3Ω |
