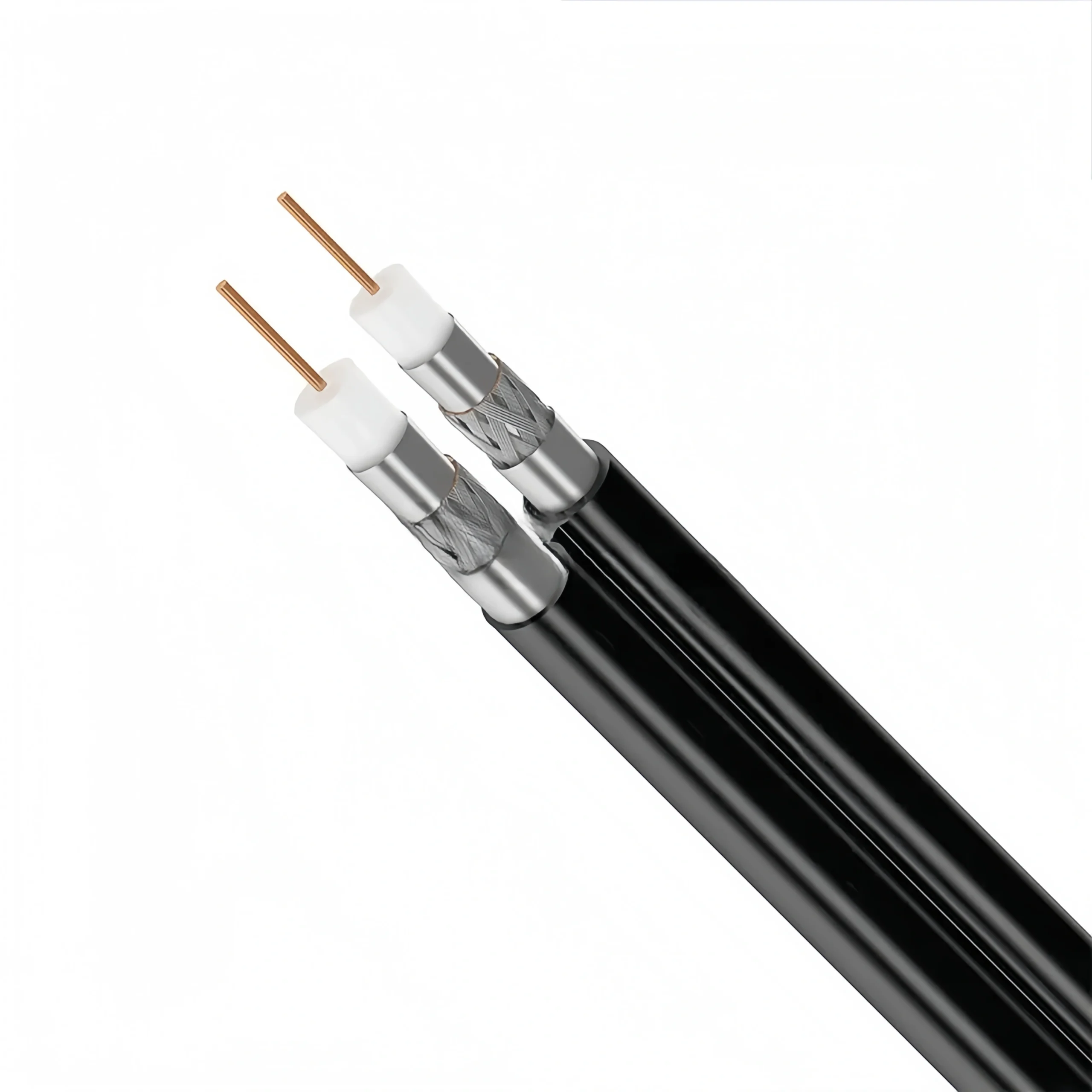

RG6 Tri Dual PVC (CMR/CMG) – Enhanced Indoor Coaxial Cable for Reliable Signal Transmission

RG6 Tri-Shield Dual PVC (CMR/CMG) is a 75-ohm coaxial cable designed for high-performance indoor signal transmission, featuring triple shielding for enhanced EMI/RFI protection and a dual PVC jacket for increased durability. With CMR (Riser) or CMG (General Purpose) fire ratings, this cable is suitable for structured cabling in commercial and residential buildings, supporting CATV, satellite, broadband, and security applications.

Key Features

1. CMR/CMG Fire-Rated for Safe Indoor Installations

• CMR (Riser) rating per UL 1666 for vertical runs in riser spaces between building floors.
• CMG (General Purpose) rating per UL 1685 for use in non-plenum spaces within walls, ceilings, and conduits.
• Designed for safe, code-compliant structured cabling in commercial and residential environments.

2. Triple Shielding for Superior Signal Integrity

• Three-layer shielding (Aluminum foil + Aluminum braid + Aluminum foil) offers better EMI/RFI rejection than standard dual-shield cables.
• Provides clean, uninterrupted signal transmission for HDTV, broadband, and security systems.
• Reduces interference in high-density electrical environments.

3. 75-Ohm Impedance for High-Frequency Performance

• Optimized for CATV, HDTV, broadband internet, and satellite communications.
• Supports frequencies up to 3 GHz, ensuring high-definition video and high-speed data transfer.
• Low attenuation ensures stable performance over long distances.

4. Copper-Clad Steel (CCS) Conductor for Strength & Efficiency

• 18 AWG CCS core provides strong mechanical support and cost efficiency.
• Maintains reliable signal transmission with minimal degradation.

5. Dual PVC Jacket for Extra Protection

• Inner PVC layer enhances mechanical stability and insulation.
• Outer PVC layer provides extra durability, abrasion resistance, and protection against environmental wear.
• Designed for long-term indoor use in structured cabling systems.

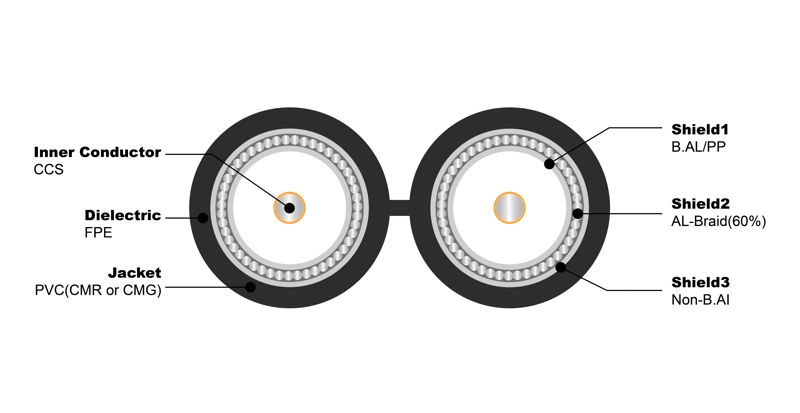

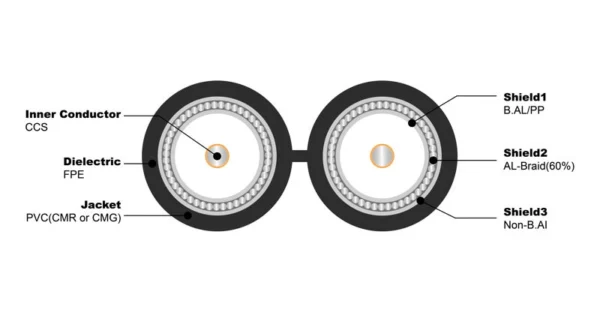

Technical Specifications

Parameter	Specification
Conductor Material	Copper-Clad Steel (CCS)
Conductor Diameter	18 AWG (1.02 mm)
Impedance	75 Ohms ± 3 Ohms
Shielding	Tri-Shield (Al Foil + Al Braid + Al Foil)
Dielectric Material	Foamed Polyethylene (FPE)
Jacket Type	Dual PVC (Inner PVC + Outer PVC)
Fire Rating	CMR (UL 1666) / CMG (UL 1685)
Outer Diameter	~6.86 mm (0.27 inches)
Frequency Range	Up to 3 GHz
Attenuation (Signal Loss)	~5.65 dB/100m @ 1 GHz
Operating Temperature	-20°C to +75°C (-4°F to +167°F)

Applications

✔ Indoor Riser & Structured Cabling – Suitable for riser spaces (CMR) and general indoor cabling (CMG).
✔ CATV & HDTV Systems – Delivers high-quality, interference-free TV signals.
✔ Broadband & Satellite Communications – Supports high-speed internet and satellite connections.
✔ Security & Surveillance – Ensures stable CCTV and video transmission.

Why Choose RG6 Tri-Shield Dual PVC (CMR/CMG)?

✅ CMR/CMG Fire Rating – Safe for riser and general indoor structured cabling.
✅ Triple Shielding – Provides superior EMI/RFI protection.
✅ Dual PVC Jacket – Enhances durability and mechanical protection.
✅ Reliable Performance – Supports up to 3 GHz for modern communication needs.

Conclusion

RG6 Tri-Shield Dual PVC (CMR/CMG) is a high-quality coaxial cable designed for safe, reliable indoor installations. With triple shielding for superior interference protection, a durable dual PVC jacket, and CMR/CMG fire ratings for code compliance, it ensures consistent, high-performance signal transmission for CATV, satellite, broadband, and security systems in commercial and residential buildings.
