RG6 S PE Messenger cable is a high-strength aerial fiber optic cable designed for outdoor installations. It features a self-supporting steel messenger wire for enhanced durability and ease of installation. The cable is jacketed with UV-resistant polyethylene (PE) for excellent weather resistance, making it ideal for long-span aerial applications.
| Brand | National Wire Cable / OEM & ODM |
|---|---|
| Model | RG6 S |
| Place of Origin | Guangdong, China |
| Categories | Coaxial Cable |
| Impedance | 75 ohm |
| Length | 100m, 305m,500m,1000ft |
| Packing | Roll, Wooden Spool, Carton, Pallet |
| Delivery Time | Normally 15 working days |

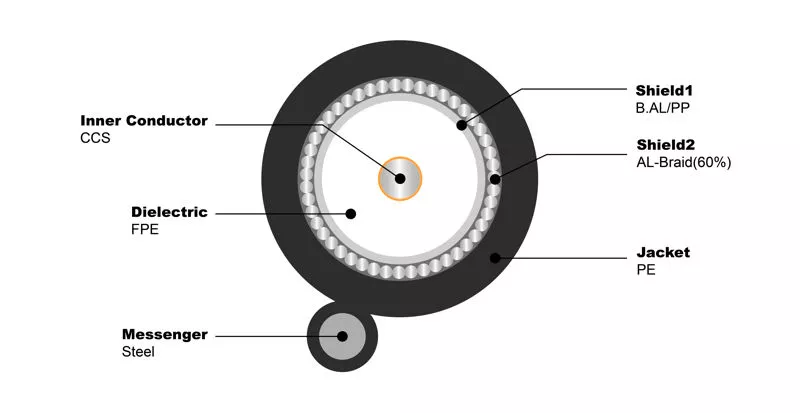

RG6 S PE Messenger is a high-performance coaxial cable designed for outdoor aerial installations. It features an RG6 solid copper-clad steel (CCS) center conductor, a high-coverage aluminum braid shield, and a durable polyethylene (PE) jacket. The cable includes a steel messenger wire for added strength and support during aerial deployment.
| Parameter | Specification |
|---|---|
| Cable Type | RG6 S PE Messenger |
| Impedance | 75 Ω |
| Center Conductor | Copper-Clad Steel (CCS) |
| Conductor Diameter | 1.02 mm (18 AWG) |
| Dielectric | Gas-Injected Foam PE |
| Shielding | Aluminum foil + aluminum braid |
| Braid Coverage | 60% to 95% |
| Jacket Material | Polyethylene (PE) |
| Outer Diameter | Approx. 6.8 mm |
| Messenger Wire | Galvanized Steel, 1.3mm-1.5mm |
| Application Frequency | Up to 3 GHz |
| Operating Temperature | -40°C to +80°C |
RG6 S PE Messenger is a reliable and durable coaxial cable designed for outdoor aerial installations. Its combination of a solid center conductor, superior shielding, and a PE jacket ensures optimal performance in various communication applications. The integrated steel messenger wire enhances mechanical strength, making it a preferred choice for CATV, broadband, and satellite TV providers.
| Attenuation(20℃): | ||
|---|---|---|
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
| 5 | 0.58 | 1.90 |
| 55 | 1.60 | 5.25 |
| 83 | 1.95 | 6.40 |
| 187 | 2.85 | 9.35 |
| 211 | 3.05 | 10.00 |
| 250 | 3.30 | 10.82 |
| 300 | 3.55 | 11.64 |
| 350 | 3.85 | 12.63 |
| 400 | 4.15 | 13.61 |
| 450 | 4.40 | 14.43 |
| 500 | 4.66 | 15.29 |
| 550 | 4.90 | 16.08 |
| 600 | 5.10 | 16.73 |
| 750 | 5.65 | 18.54 |
| 865 | 6.10 | 20.01 |
| 1000 | 6.55 | 21.49 |
| Similar Type: | ||||||
|---|---|---|---|---|---|---|
| Cond.Type &Nom.D.C.R | Shielding | Shielding& %Coverage | Jacket Type | Nom. Capacitance | Nom.Imp.Ω | |
| RG6 S 60% CM | 18AWG (Solid)CCS 87Ω/km | B.Al/PET | Al-Braid 60% | PVC CM | 52±3pF/m | 75±3Ω |
| RG6 S 60% (CMR or CMG) | 18AWG (Solid)CCS 87Ω/km | B.Al/PET | Al-Braid 60% | PVC (CMR or CMG) | 52±3pF/m | 75±3Ω |
| RG6 S 90% Jelly PE | 18AWG (Solid)CCS 87Ω/km | B.Al/PET | Al-Braid 90% +Jelly | PE | 52±3pF/m | 75±3Ω |
| RG6 S 90% CM | 18AWG (Solid)CCS 87Ω/km | B.Al/PET | Al-Braid 90% | PVC CM | 52±3pF/m | 75±3Ω |
| RG6 S 90% (CMR or CMG) | 18AWG (Solid)CCS 87Ω/km | B.Al/PET | Al-Braid 90% | PVC (CMR or CMG) | 52±3pF/m | 75±3Ω |
| RG6 S 60% CMP | 18AWG (Solid)CCS 87Ω/km | B.Al/PET | Al-Braid 60% | PVC CMP | 52±3pF/m | 75±3Ω |
| RG6 S 90% CMP | 18AWG (Solid)CCS 87Ω/km | B.Al/PET | Al-Braid 90% | PVC CMP | 52±3pF/m | 75±3Ω |
| RG6 S CCS 60%LSZH | 18AWG (Solid)CCS 87Ω/km | B.Al/PET | Al-Braid 60% | LSZH | 52±3pF/m | 75±3Ω |
| RG6 S BC 40% PVC | 18AWG (Solid)CCS 21.5Ω/km | B.Al/PET | Al-Braid 40% | PVC | 52±3pF/m | 75±3Ω |
| RG6 S BC 90% Jelly PE | 18AWG (Solid)CCS 21.5Ω/km | B.Al/PET | Al-Braid 90% +Jelly | PE | 52±3pF/m | 75±3Ω |
| RG6 S BC 60% LSZH | 18AWG (Solid)CCS 21.5Ω/km | B.Al/PET | Al-Braid 60% | LSZH | 52±3pF/m | 75±3Ω |
| RG6 S super economy | 19AWG(Solid) CCS(15%) 180 Ω/km | B.Al/PET | Al-Braid 60% | PVC-Recyle | 52±3pF/m | 75±3Ω |
| RG6 S economy PVC-Recyle | 18AWG(Solid) CCS (18%) 118 Ω/km | B.Al/PET | Al-Braid 90% | PVC-Recyle | 52±3pF/m | 75±3Ω |
