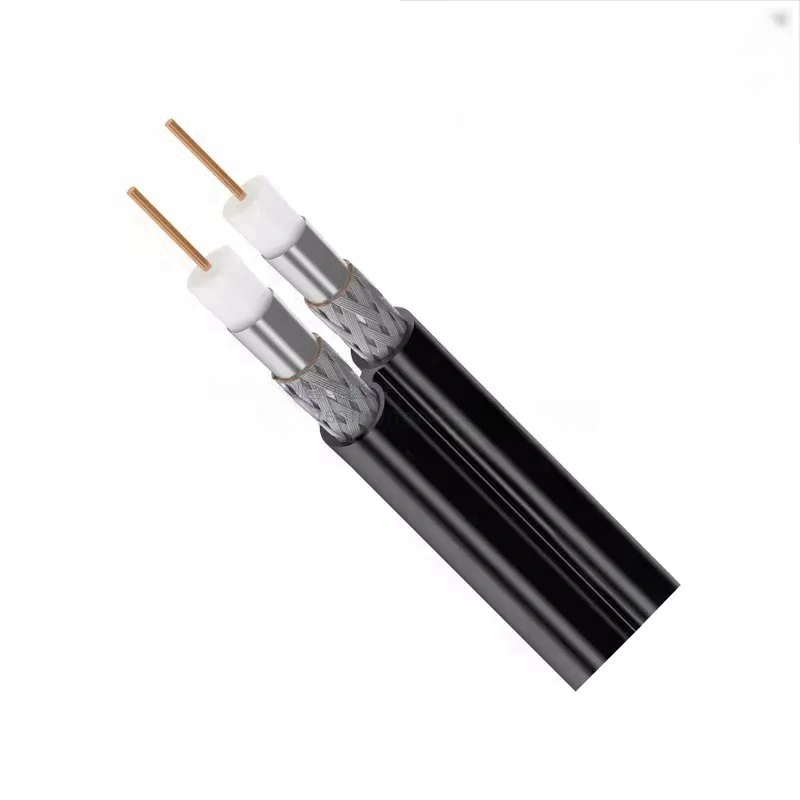

RG6 Single Shield Dual PVC CM Coaxial Cable – Reliable Indoor Signal Transmission
RG6 Single Shield Dual PVC CM is a 75-ohm coaxial cable designed for indoor structured cabling, featuring a single shielding layer for standard EMI/RFI protection and a dual PVC jacket for enhanced durability. With a CM (Communications Riser) rating, this cable is suitable for CATV, satellite, broadband, and security applications in residential and commercial settings.
Key Features
1. CM-Rated for General Indoor Installations
- CM (Communications) fire rating per UL 1685 and NEC standards.
- Safe for use in riser spaces and general indoor cabling.
- Suitable for commercial, office, and residential buildings.
2. Single Shielding for Standard Interference Protection
- Single-layer shielding (Aluminum foil + Aluminum braid) reduces EMI/RFI interference.
- Ideal for CATV, satellite, and security signal transmission in controlled environments.
- Ensures clear, uninterrupted signal quality.
3. 75-Ohm Impedance for High-Frequency Applications
- Optimized for CATV, satellite TV, and broadband internet.
- Supports frequencies up to 3 GHz for high-speed data transmission and HDTV signals.
- Low attenuation ensures stable, long-distance performance.
4. Copper-Clad Steel (CCS) Conductor for Durability
- 18 AWG CCS core provides strong mechanical support while maintaining signal integrity.
- Cost-effective design for reliable performance in indoor applications.
5. Dual PVC Jacket for Extra Protection
- Inner PVC layer provides structural stability and insulation.
- Outer PVC layer enhances abrasion resistance and longevity.
- Offers added durability for in-wall, ceiling, and general indoor installations.

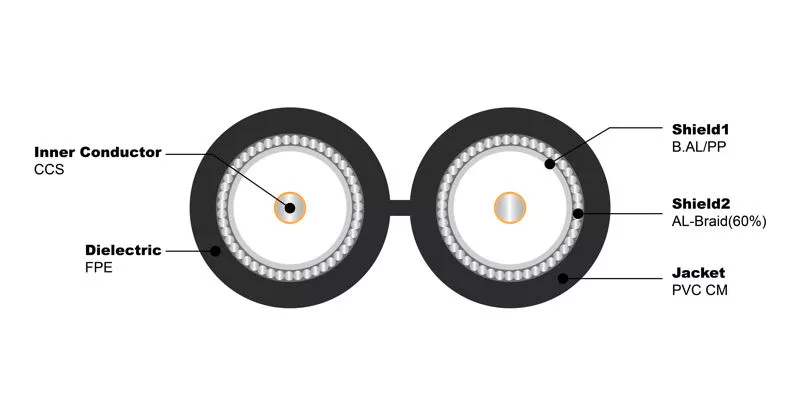

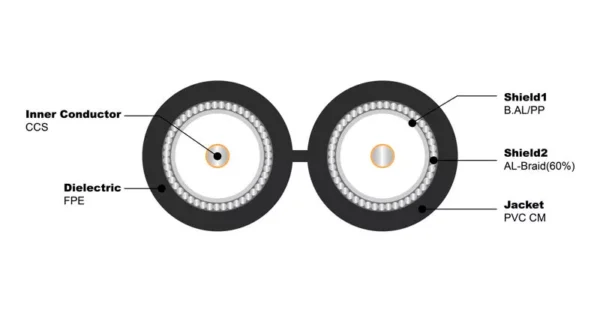

Technical Specifications
Parameter Specification
Conductor Material Copper-Clad Steel (CCS)
Conductor Diameter 18 AWG (1.02 mm)
Impedance 75 Ohms ± 3 Ohms
Shielding Single Shield (Al Foil + Al Braid)
Dielectric Material Foamed Polyethylene (FPE)
Jacket Type Dual PVC (Inner PVC + Outer PVC)
Outer Diameter ~6.86 mm (0.27 inches)
Frequency Range Up to 3 GHz
Attenuation (Signal Loss) ~5.65 dB/100m @ 1 GHz
Fire Safety Compliance UL 1685, NEC CM Rating
Operating Temperature -20°C to +75°C (-4°F to +167°F)
Applications
✔ Indoor CATV & HDTV Systems – Provides clear, interference-free TV signals.
✔ Broadband & Satellite Communications – Supports high-speed internet and satellite connections.
✔ Security & Surveillance – Ensures stable CCTV and video transmission.
✔ Riser & In-Wall Installations – Safe for structured cabling in commercial and residential spaces.
Why Choose RG6 Single Shield Dual PVC CM?
✅ CM-Rated for Indoor Use – Safe for riser and general in-wall installations.
✅ Single Shielding – Provides adequate EMI/RFI protection for standard applications.
✅ Dual PVC Jacket – Enhances durability and mechanical protection.
✅ Reliable Performance – Supports up to 3 GHz for modern communication needs.
Conclusion
RG6 Single Shield Dual PVC CM is a cost-effective, indoor-rated coaxial cable designed for CATV, broadband, satellite, and security applications. With a dual PVC jacket for durability, single shielding for interference protection, and a CM fire rating for safe indoor use, it delivers stable and reliable performance in commercial and residential settings.
| Attenuation(20℃): | ||
|---|---|---|
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
| 5 | 0.58 | 1.90 |
| 55 | 1.60 | 5.25 |
| 83 | 1.95 | 6.40 |
| 187 | 2.85 | 9.35 |
| 211 | 3.05 | 10.00 |
| 250 | 3.30 | 10.82 |
| 300 | 3.55 | 11.64 |
| 350 | 3.85 | 12.63 |
| 400 | 4.15 | 13.61 |
| 450 | 4.40 | 14.43 |
| 500 | 4.66 | 15.29 |
| 550 | 4.90 | 16.08 |
| 600 | 5.10 | 16.73 |
| 750 | 5.65 | 18.54 |
| 865 | 6.10 | 20.01 |
| 1000 | 6.55 | 21.49 |
