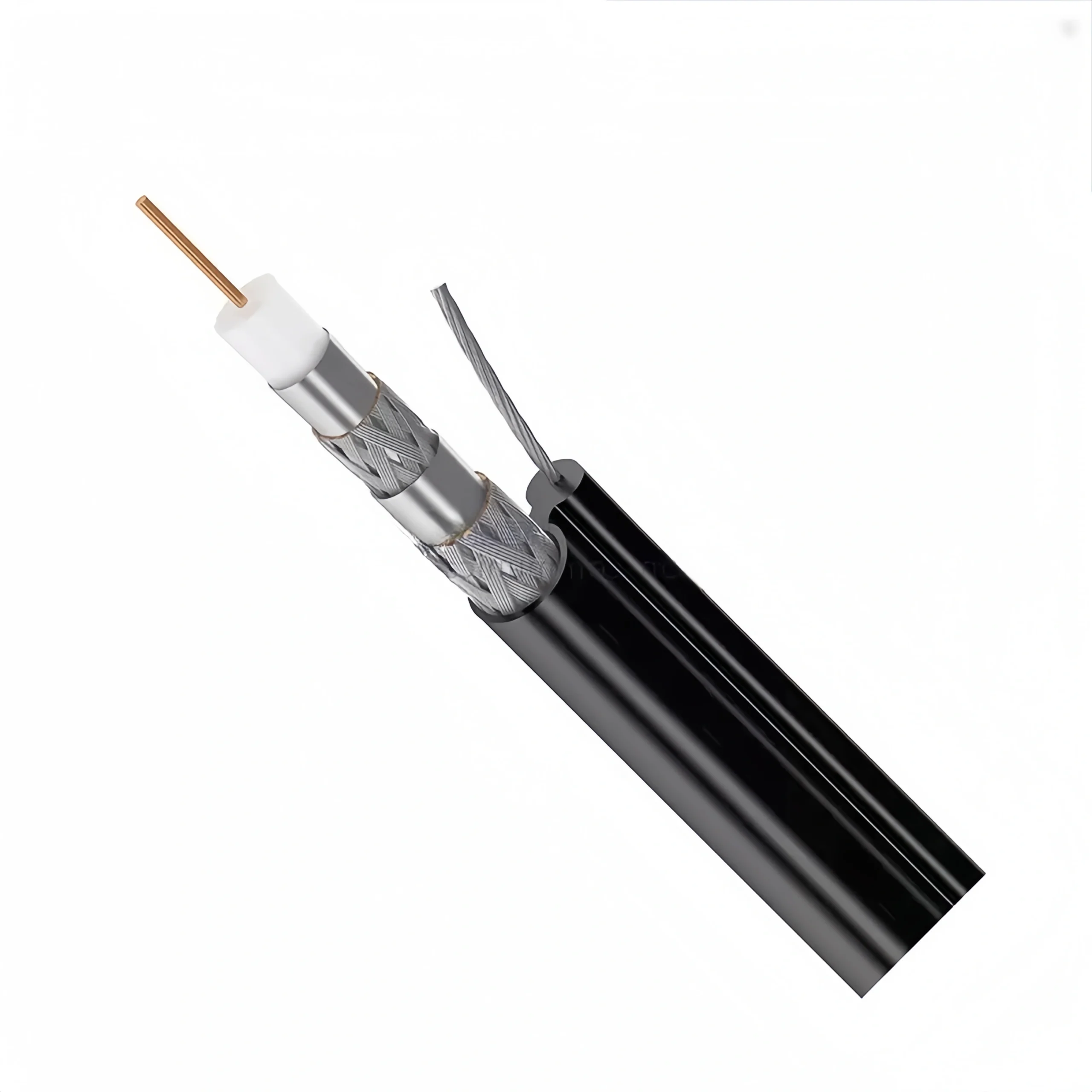

RG6 Quad-Shield Messenger Coaxial Cable – High-Performance Aerial Solution
RG6 Quad-Shield Messenger is a 75-ohm coaxial cable designed for aerial installations, featuring quad shielding for superior EMI/RFI protection and a reinforced galvanized steel messenger wire for structural support. Engineered for CATV, satellite, broadband, and security applications, this cable ensures low signal loss, strong mechanical stability, and durability in outdoor environments.
Key Features
1. Built-In Messenger Wire for Aerial Installations
- High-strength galvanized steel messenger provides structural support for aerial installations.
- Reduces sagging and maintains stable long-distance overhead deployment.
- Ideal for pole-to-building connections in broadband and TV networks.
2. Quad Shielding for Maximum Signal Protection
- Four-layer shielding (Aluminum foil + Aluminum braid + Aluminum foil + Aluminum braid) offers superior EMI/RFI rejection.
- Ensures stable, interference-free signal transmission, even in high-density environments.
- Ideal for HDTV, satellite, and high-speed broadband connections.
3. 75-Ohm Impedance for High-Frequency Applications
- Optimized for CATV, satellite TV, and broadband internet.
- Supports frequencies up to 3 GHz for high-definition video and high-speed data transmission.
- Low attenuation ensures stable, long-distance performance.
4. Durable Copper-Clad Steel (CCS) Conductor
- 18 AWG CCS core provides strong mechanical support while maintaining efficient signal transmission.
- Cost-effective solution with excellent conductivity and durability.
5. Weather-Resistant Jacket for Outdoor Use
- UV-resistant, weatherproof polyethylene (PE) or PVC jacket protects against moisture, extreme temperatures, and environmental wear.
- Designed for long-term outdoor durability in aerial applications.
- Maintains flexibility for easy installation and handling.

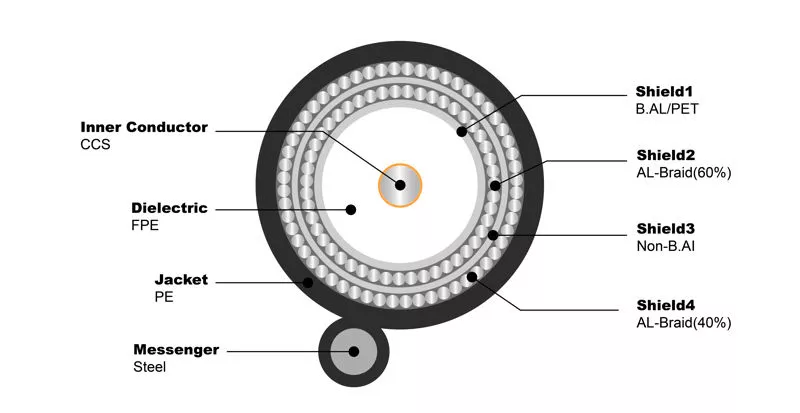

Technical Specifications
| Parameter | Specification |
| Conductor Material | Copper-Clad Steel (CCS) |
| Conductor Diameter | 18 AWG (1.02 mm) |
| Impedance | 75 Ohms ± 3 Ohms |
| Shielding | Quad Shield (Al Foil + Al Braid + Al Foil + Al Braid) |
| Dielectric Material | Foamed Polyethylene (FPE) |
| Jacket Type | UV-Resistant PE or PVC |
| Messenger Wire | Galvanized Steel |
| Outer Diameter | ~7.11 mm (0.28 inches) |
| Frequency Range | Up to 3 GHz |
| Attenuation (Signal Loss) | ~5.65 dB/100m @ 1 GHz |
| Operating Temperature | -40°C to +80°C (-40°F to +176°F) |
Applications
✔ Aerial Cable Installations – Ideal for pole-to-building and long-distance overhead deployments.
✔ CATV & HDTV Systems – Provides high-quality, interference-free TV signals.
✔ Broadband & Satellite Communications – Supports high-speed internet and satellite connections.
✔ Security & Surveillance – Ensures stable CCTV and video transmission.
Why Choose RG6 Quad-Shield Messenger?
✅ Built-In Messenger Wire – Provides structural support for aerial installations.
✅ Quad Shielding – Maximum EMI/RFI protection for signal clarity.
✅ Weatherproof Jacket – Ensures long-term durability in outdoor conditions.
✅ High-Frequency Performance – Supports up to 3 GHz for modern applications.
Conclusion
RG6 Quad-Shield Messenger is a high-performance coaxial cable built for outdoor aerial installations. With quad shielding for superior signal protection, a steel messenger wire for structural support, and a weather-resistant jacket, it delivers reliable, interference-free performance for CATV, satellite, broadband, and security applications in demanding outdoor environments.
| Attenuation(20℃): | | |
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
| 5 | 0.58 | 1.90 |
| 55 | 1.60 | 5.25 |
| 83 | 1.95 | 6.40 |
| 187 | 2.85 | 9.35 |
| 211 | 3.05 | 10.00 |
| 250 | 3.30 | 10.82 |
| 300 | 3.55 | 11.64 |
| 350 | 3.85 | 12.63 |
| 400 | 4.15 | 13.61 |
| 450 | 4.40 | 14.43 |
| 500 | 4.66 | 15.29 |
| 550 | 4.90 | 16.08 |
| 600 | 5.10 | 16.73 |
| 750 | 5.65 | 18.54 |
| 865 | 6.10 | 20.01 |
| 1000 | 6.55 | 21.49 |
