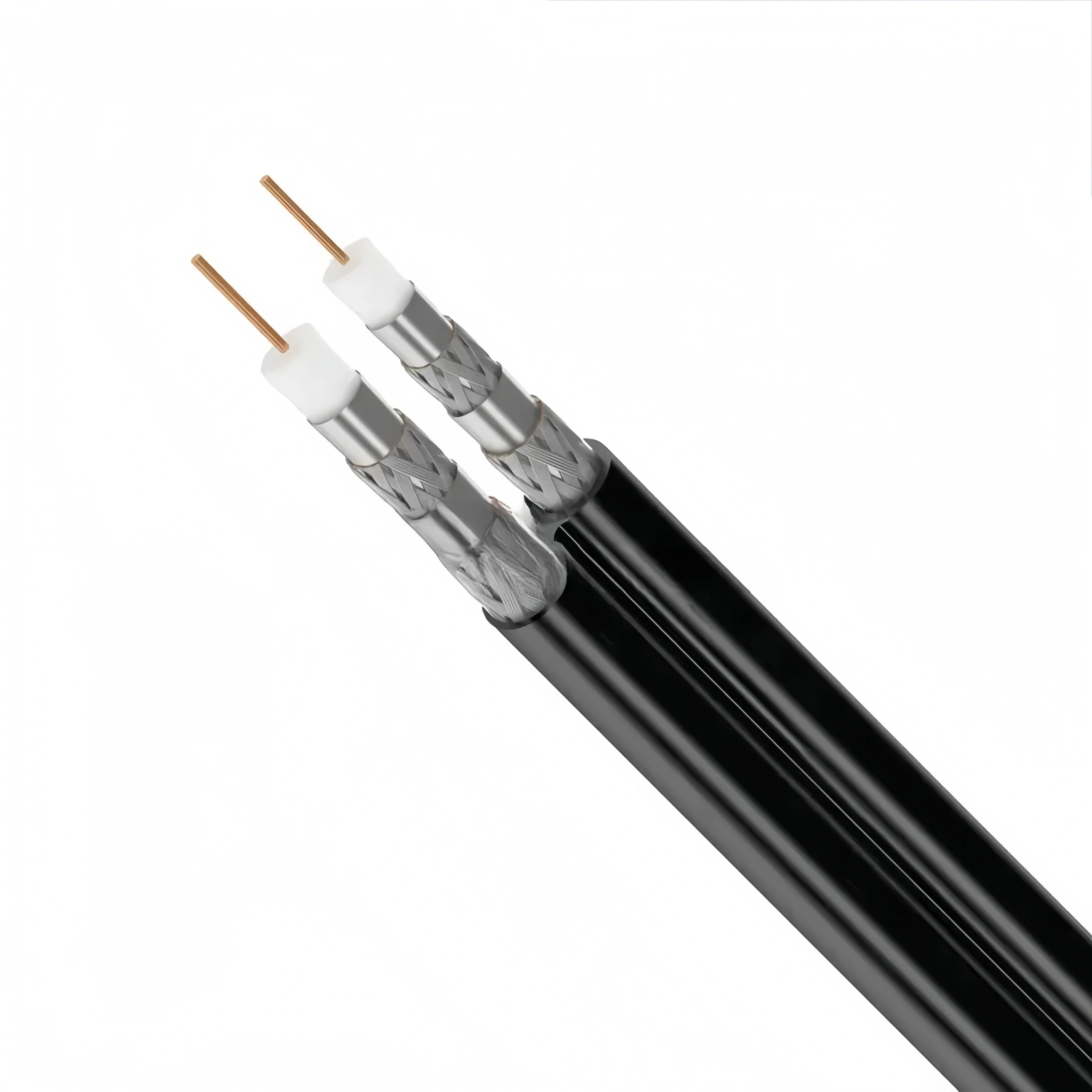

RG6 Q Dual PVC (CMR/CMG) – High-Performance Coaxial Cable for Indoor Installations
RG6 Quad-Shield Dual PVC (CMR/CMG) is a 75-ohm coaxial cable designed for high-frequency indoor signal transmission, featuring quad shielding for maximum EMI/RFI protection and a dual PVC jacket for enhanced durability. With CMR (Riser) or CMG (General-Purpose) fire ratings, this cable is ideal for structured cabling in commercial and residential buildings, supporting CATV, satellite, broadband, and security applications.
Key Features
1. CMR/CMG Fire-Rated for Safe Indoor Installations
- CMR (Riser) rating per UL 1666 for vertical installations in riser spaces between building floors.
- CMG (General-Purpose) rating per UL 1685 for use in walls, ceilings, conduits, and non-riser indoor spaces.
- Ensures fire safety compliance for structured cabling in commercial, industrial, and residential environments.
2. Quad Shielding for Maximum Interference Protection
- Four-layer shielding (Aluminum foil + Aluminum braid + Aluminum foil + Aluminum braid) for superior EMI/RFI rejection.
- Provides clear, interference-free signal transmission for HDTV, broadband, and security systems.
- Ideal for high-density electrical environments where signal integrity is critical.
3. 75-Ohm Impedance for High-Frequency Performance
- Optimized for CATV, HDTV, broadband internet, and satellite communications.
- Supports frequencies up to 3 GHz, ensuring high-definition video and high-speed data transfer.
- Low attenuation ensures stable performance over long distances.
4. Copper-Clad Steel (CCS) Conductor for Strength & Efficiency
- 18 AWG CCS core provides strong mechanical support and cost efficiency.
- Maintains reliable signal transmission with minimal degradation.
5. Dual PVC Jacket for Extra Protection
- Inner PVC layer enhances mechanical stability and insulation.
- Outer PVC layer provides extra durability, abrasion resistance, and protection against environmental wear.
- Designed for long-term indoor use in structured cabling systems.

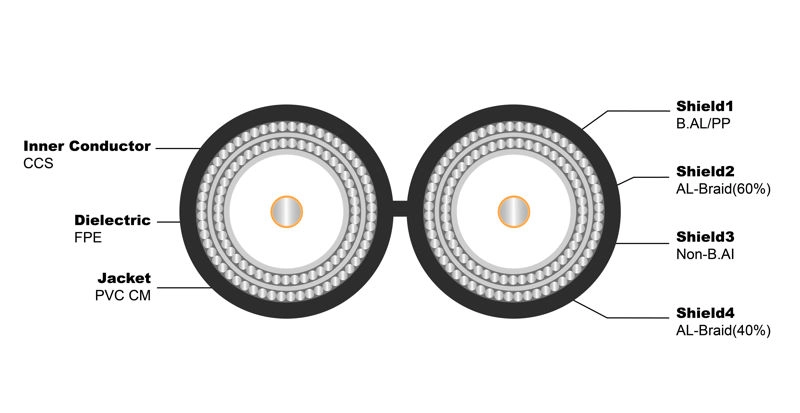

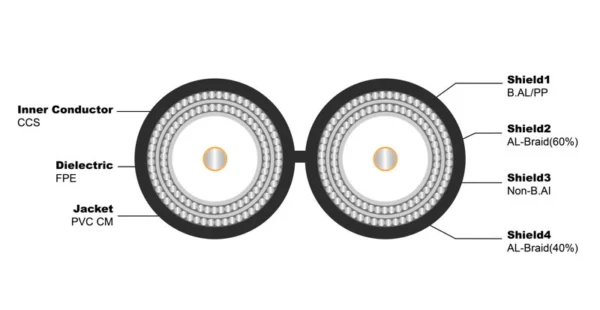

Technical Specifications
| Parameter | Specification |
| Conductor Material | Copper-Clad Steel (CCS) |
| Conductor Diameter | 18 AWG (1.02 mm) |
| Impedance | 75 Ohms ± 3 Ohms |
| Shielding | Quad Shield (Al Foil + Al Braid + Al Foil + Al Braid) |
| Dielectric Material | Foamed Polyethylene (FPE) |
| Jacket Type | Dual PVC (Inner PVC + Outer PVC) |
| Fire Rating | CMR (UL 1666) / CMG (UL 1685) |
| Outer Diameter | ~6.86 mm (0.27 inches) |
| Frequency Range | Up to 3 GHz |
| Attenuation (Signal Loss) | ~5.65 dB/100m @ 1 GHz |
| Operating Temperature | -20°C to +75°C (-4°F to +167°F) |
Applications
✔ Indoor Riser & Structured Cabling – Suitable for riser spaces (CMR) and general indoor cabling (CMG).
✔ CATV & HDTV Systems – Delivers high-quality, interference-free TV signals.
✔ Broadband & Satellite Communications – Supports high-speed internet and satellite connections.
✔ Security & Surveillance – Ensures stable CCTV and video transmission.
Why Choose RG6 Quad-Shield Dual PVC (CMR/CMG)?
✅ CMR/CMG Fire Rating – Safe for riser and general indoor structured cabling.
✅ Quad Shielding – Provides maximum EMI/RFI protection.
✅ Dual PVC Jacket – Enhances durability and mechanical protection.
✅ Reliable Performance – Supports up to 3 GHz for modern communication needs.
Conclusion
RG6 Quad-Shield Dual PVC (CMR/CMG) is a high-quality coaxial cable designed for safe, reliable indoor installations. With quad shielding for superior interference protection, a durable dual PVC jacket, and CMR/CMG fire ratings for code compliance, it ensures consistent, high-performance signal transmission for CATV, satellite, broadband, and security systems in commercial and residential buildings.
