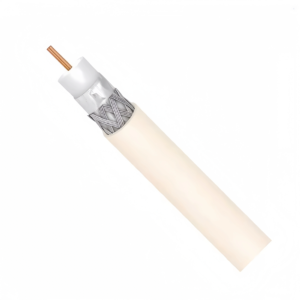

RG6 CCS LSZH Coaxial Cable – Low-Smoke, Halogen-Free Solution

RG6 CCS LSZH is a high-performance 75-ohm coaxial cable designed for low-smoke, zero-halogen (LSZH) environments. It features a copper-clad steel (CCS) conductor for cost-effective signal transmission, ensuring durability and long-distance performance. The LSZH outer jacket minimizes toxic emissions in case of fire, making it ideal for indoor public spaces, tunnels, and high-density buildings.

Key Features

1. Low-Smoke, Zero-Halogen (LSZH) Jacket for Safety

• Flame-retardant LSZH material releases minimal smoke and no toxic halogens when exposed to fire.
• Compliant with IEC 60332-1, IEC 60754-1/2, and IEC 61034 standards for fire safety.
• Suitable for public buildings, airports, tunnels, hospitals, and enclosed areas where toxic emissions must be minimized.

2. Copper-Clad Steel (CCS) Conductor for Signal Integrity

• 18 AWG CCS center conductor provides a balance of strength, conductivity, and cost efficiency.
• Ideal for long-distance signal transmission with reduced attenuation.
• Supports high-frequency applications with reliable performance.

3. Superior Shielding for Signal Protection

• Dual shielding with aluminum foil and aluminum braid prevents RFI (Radio Frequency Interference) and EMI (Electromagnetic Interference).
• Ensures clear digital TV, satellite, and broadband internet signals.

4. Optimized for High-Frequency Applications

• 75-ohm impedance ensures compatibility with modern signal transmission systems.
• Supports frequencies up to 3 GHz, making it ideal for HDTV, satellite, and broadband networks.

5. Robust and Durable Construction

• Resistant to moisture, abrasion, and environmental wear.
• Suitable for indoor structured cabling where safety and performance are critical.

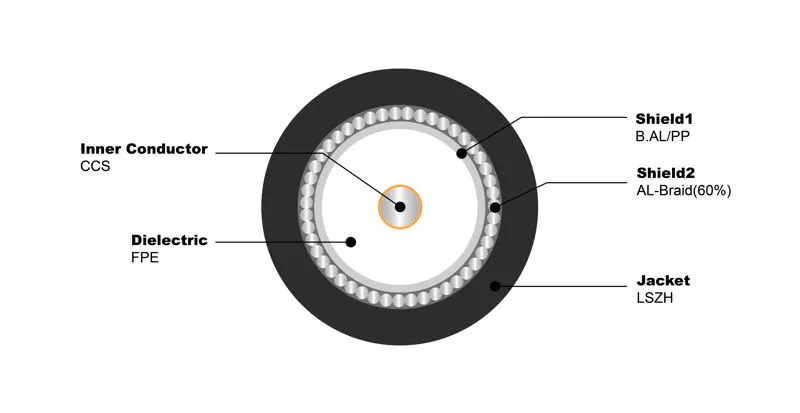

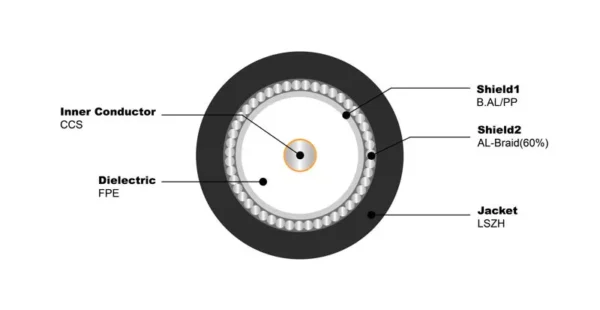

Technical Specifications

Parameter	Specification
Conductor Material	Copper-Clad Steel (CCS)
Conductor Diameter	18 AWG (1.02 mm)
Impedance	75 Ohms ± 3 Ohms
Shielding	Aluminum Foil + Aluminum Braid
Dielectric Material	Foamed Polyethylene (FPE)
Jacket Type	LSZH (Low-Smoke, Zero-Halogen)
Outer Diameter	~6.86 mm (0.27 inches)
Frequency Range	Up to 3 GHz
Attenuation (Signal Loss)	~5.65 dB/100m @ 1 GHz
Fire Safety Compliance	IEC 60332-1, IEC 60754-1/2, IEC 61034
Operating Temperature	-20°C to +60°C (-4°F to +140°F)

Applications

✔ Public Buildings & Indoor Installations – Ensures fire safety in airports, hospitals, offices, and residential complexes.
✔ Cable TV & Satellite Systems – Delivers high-quality CATV, HDTV, and digital satellite signals.
✔ Broadband & Internet Services – Ideal for high-speed data transmission in structured cabling systems.
✔ Security & Surveillance – Supports CCTV and video surveillance applications with minimal interference.
✔ Industrial & High-Density Areas – Suitable for factories, tunnels, and enclosed public spaces where halogen-free materials are required.

Why Choose RG6 CCS LSZH?

✅ LSZH Fire-Safe Jacket – Reduces smoke and toxic emissions in case of fire.
✅ High-Frequency Performance – Supports up to 3 GHz for modern data and video applications.
✅ Dual Shielding Protection – Prevents signal interference for reliable transmission.
✅ Durable & Cost-Effective – CCS conductor provides strength and long-distance performance.

Conclusion

RG6 CCS LSZH is a high-quality, low-smoke, halogen-free coaxial cable, designed for safe indoor installations where fire safety and signal integrity are critical. With its CCS conductor, dual shielding, and LSZH jacket, it is an ideal choice for CATV, broadband, satellite, and security applications in sensitive environments.
