RG59/U Single Shield Bare Copper CMP – 75-Ohm Coaxial Cable for Plenum-Rated Installations

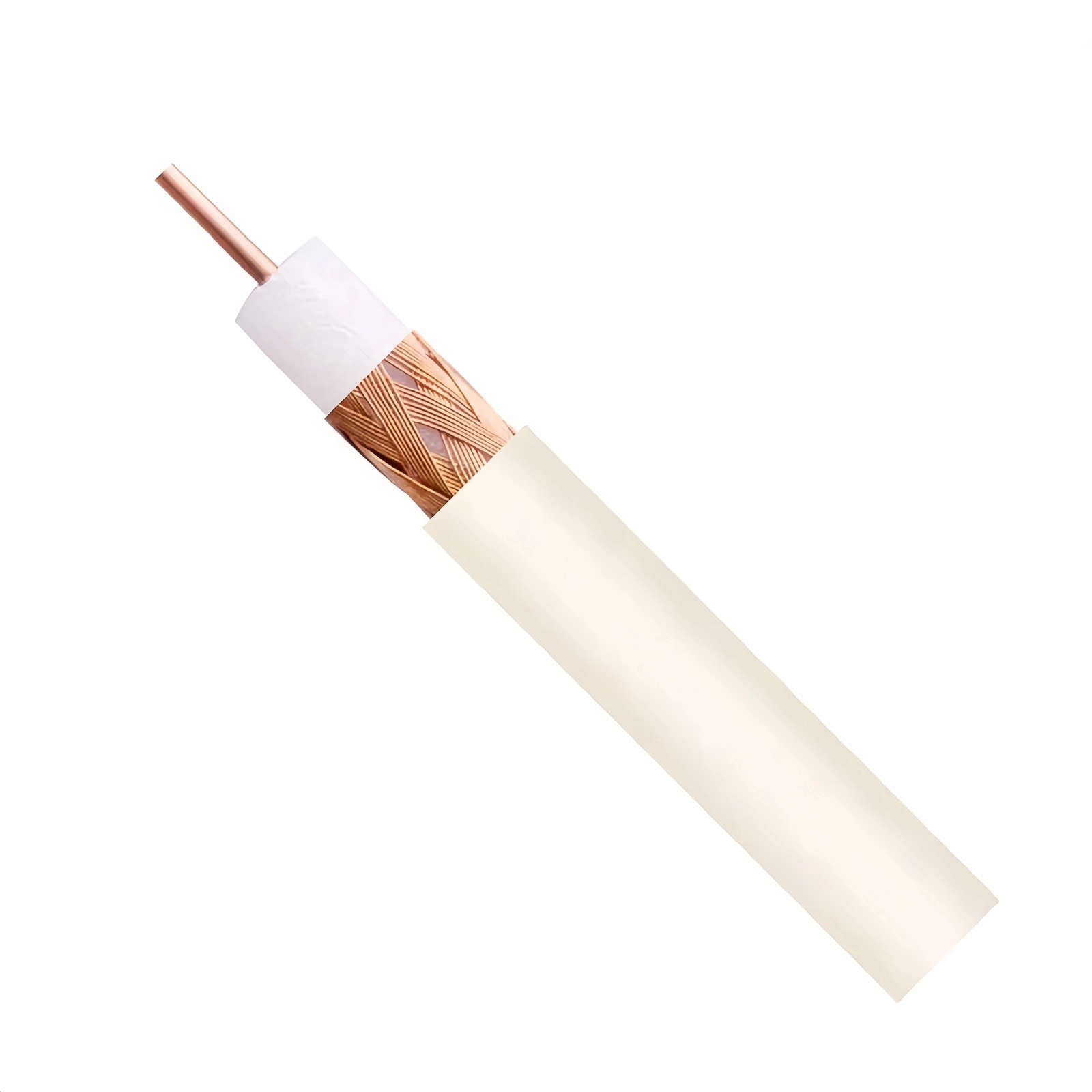

RG59/U Single Shield BC CMP is a 75-ohm coaxial cable designed for CCTV, analog video, and RF signal transmission in commercial and residential plenum spaces. Featuring a solid bare copper (BC) conductor for superior signal quality, single shielding for EMI/RFI protection, and a CMP (Plenum) fire-rated jacket for compliance with strict building codes, this cable is ideal for high-performance, low-loss video and RF applications.

Key Features

1. CMP (Plenum) Fire-Rated for Safe Indoor Use

• CMP-rated per UL 910, ensuring low-smoke, flame-resistant properties for plenum spaces.
• Compliant with NEC and NFPA standards, making it suitable for air-handling spaces in commercial buildings.

2. 75-Ohm Impedance for High-Quality Signal Transmission

• Optimized for CCTV surveillance, analog video, and RF signal distribution.
• Provides low signal loss and stable transmission over short- to medium-range distances.
• Compatible with BNC, RCA, and F-type connectors for versatile installations.

3. Bare Copper (BC) Conductor for Superior Conductivity

• Solid BC conductor ensures high signal integrity and low attenuation.
• Offers better performance than Copper-Clad Steel (CCS) in video and RF applications.

4. Single Shielding for Basic EMI/RFI Protection

• Features aluminum foil + braided shielding to reduce electromagnetic and radio frequency interference.
• Provides adequate noise rejection for security and broadcast applications.

5. CMP-Rated Jacket for Durability & Fire Safety

• Plenum-rated (CMP) jacket allows installation in air ducts and ceiling spaces.
• Low-smoke, flame-retardant material ensures compliance with building safety standards.

Technical Specifications

Parameter	Specification
Conductor Material	Solid Bare Copper (BC)
Conductor Diameter	20 AWG – 22 AWG (0.81 mm – 0.64 mm)
Impedance	75 Ohms ± 3 Ohms

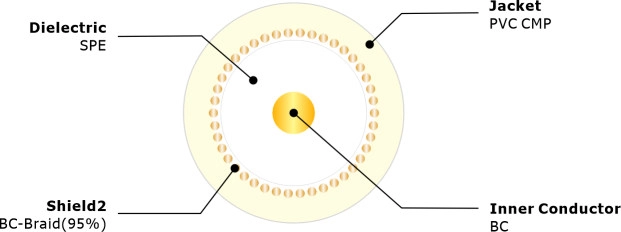

Shielding	Single Shield (Aluminum Foil + Braid)
Dielectric Material	Solid Polyethylene (PE) or Foam PE
Jacket Material	CMP (Plenum-Rated)
Outer Diameter	~6.15 mm (0.24 inches)
Frequency Range	Up to 1 GHz
Attenuation (Signal Loss)	~10.8 dB/100m @ 100 MHz
Operating Temperature	-20°C to +75°C (-4°F to +167°F)

Applications

✔ Plenum-Rated Installations – Ideal for use in air-handling spaces, ceilings, and ducts.
✔ CCTV Security Systems – Commonly used in analog security camera setups.
✔ Broadcast & Analog Video Transmission – Suitable for composite video and RF distribution.
✔ Commercial & Residential A/V Systems – Supports TV, satellite, and VCR connections.

Why Choose RG59/U Single Shield BC CMP?

✅ CMP Fire Rating – Compliant with strict safety codes for plenum spaces.
✅ Bare Copper Conductor – Ensures high signal quality and low loss.
✅ Reliable for CCTV & RF Applications – Provides stable video and signal transmission.
✅ Durable & Flexible – Easy to install in structured cabling systems.

Conclusion

RG59/U Single Shield BC CMP is a high-performance, fire-rated coaxial cable designed for CCTV, analog video, and RF applications in plenum environments. With a bare copper conductor for superior signal quality, single shielding for EMI/RFI protection, and a CMP-rated jacket for fire safety, it is an ideal choice for secure and reliable installations in commercial and residential buildings.
