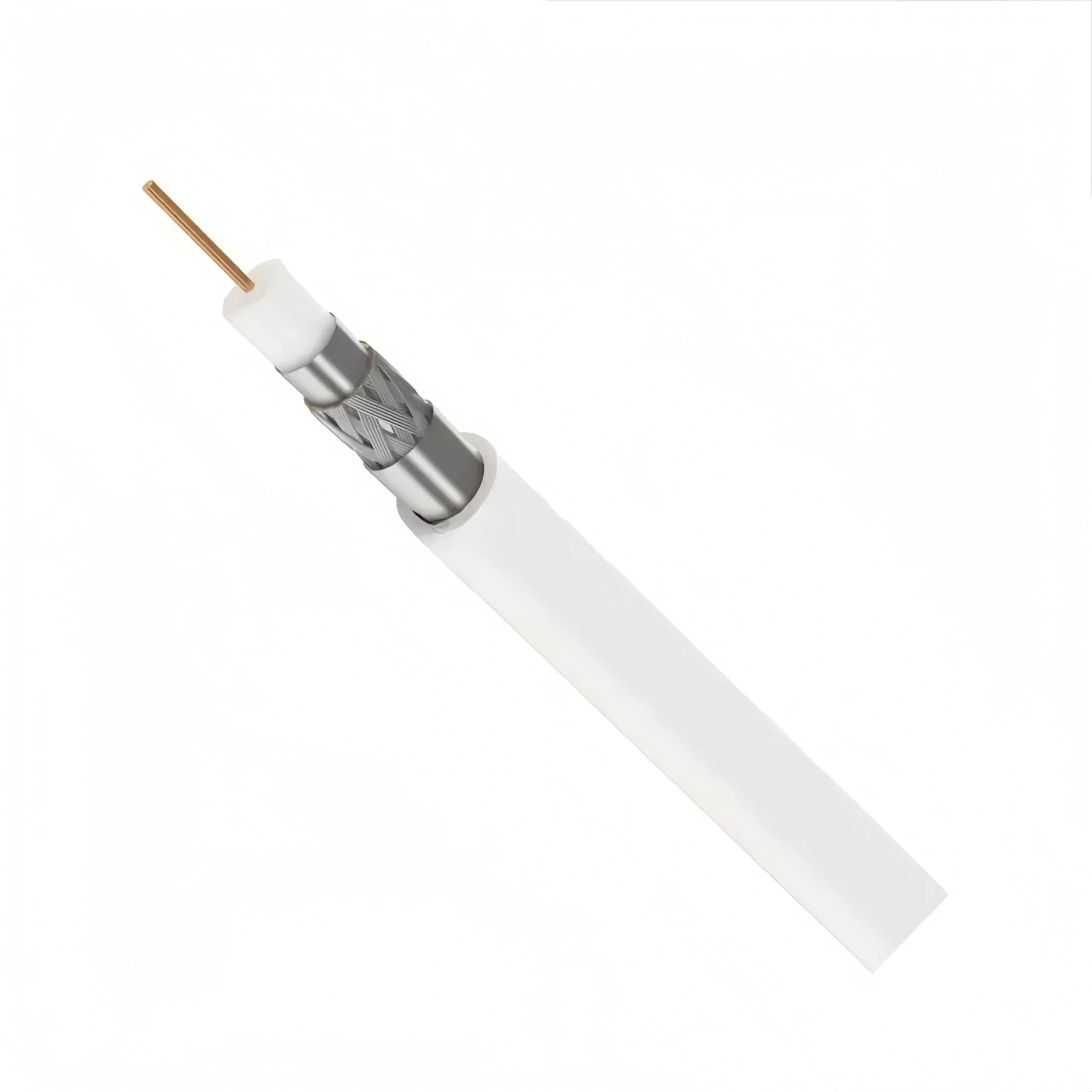

RG59 Tri-Shield PVC CMR – 75-Ohm Coaxial Cable for Commercial Installations

RG59 Tri-Shield PVC CMR is a 75-ohm coaxial cable designed for CCTV, analog video, and RF applications in commercial and residential settings. Featuring triple shielding for enhanced EMI/RFI protection, a solid bare copper (BC) conductor for superior signal transmission, and a CMR (Riser-Rated) PVC jacket for vertical installations, this cable ensures stable, low-loss signal transmission for security and broadcast systems.

Key Features

1. 75-Ohm Impedance for High-Quality Signal Transmission

• Optimized for CCTV surveillance, analog video, and RF signal distribution.
• Provides low signal loss and stable transmission over short- to medium-range distances.
• Compatible with BNC, RCA, and F-type connectors for versatile installations.

2. Triple Shielding for Superior EMI/RFI Protection

• Features aluminum foil, braided shielding, and an additional foil layer to block interference from external signals.
• Ensures clear, uninterrupted video and RF transmission, even in high-interference environments.

3. Solid Bare Copper (BC) Conductor for Low Signal Loss

• Bare copper conductor offers better conductivity and lower attenuation than CCA or CCS alternatives.
• Ensures strong, reliable signal transmission for CCTV and video applications.

4. CMR (Riser-Rated) PVC Jacket for Fire Safety & Durability

• CMR-rated jacket meets UL 1666 fire safety standards for vertical installations in riser spaces.
• Offers flame resistance and protection against mechanical wear.

Technical Specifications

Parameter	Specification
Conductor Material	Solid Bare Copper (BC)
Conductor Diameter	20 AWG – 22 AWG (0.81 mm – 0.64 mm)
Impedance	75 Ohms ± 3 Ohms
Shielding	Triple Shield (Aluminum Foil + Braid + Foil)
Dielectric Material	Solid Polyethylene (PE) or Foam PE
Jacket Material	CMR (Riser-Rated) PVC
Outer Diameter	~6.15 mm (0.24 inches)
Frequency Range	Up to 1 GHz
Attenuation (Signal Loss)	~10.8 dB/100m @ 100 MHz
Operating Temperature	-20°C to +75°C (-4°F to +167°F)
Operating Temperature	-20°C to +75°C (-4°F to +167°F)

Applications

✔ CCTV Security Systems – Used in analog surveillance camera setups.
✔ Broadcast & Analog Video Transmission – Supports composite video and RF distribution.
✔ Commercial & Residential A/V Systems – Ideal for TV, satellite, and VCR connections.
✔ Riser Installations – Designed for vertical runs between floors in buildings.

Why Choose RG59 Tri-Shield PVC CMR?

✅ Triple Shielding – Superior EMI/RFI protection for stable signal quality.
✅ Bare Copper Conductor – Ensures high conductivity and low signal loss.
✅ CMR Fire Rating – Meets riser-rated safety standards for vertical installations.
✅ Durable & Flexible – Ideal for structured cabling in commercial and residential setups.

Conclusion

RG59 Tri-Shield PVC CMR is a high-performance, riser-rated coaxial cable designed for CCTV, analog video, and RF applications. With triple shielding for superior interference protection, a bare copper conductor for optimal signal transmission, and a CMR-rated PVC jacket for fire safety, it is an ideal choice for commercial and residential installations requiring secure and reliable video transmission.
