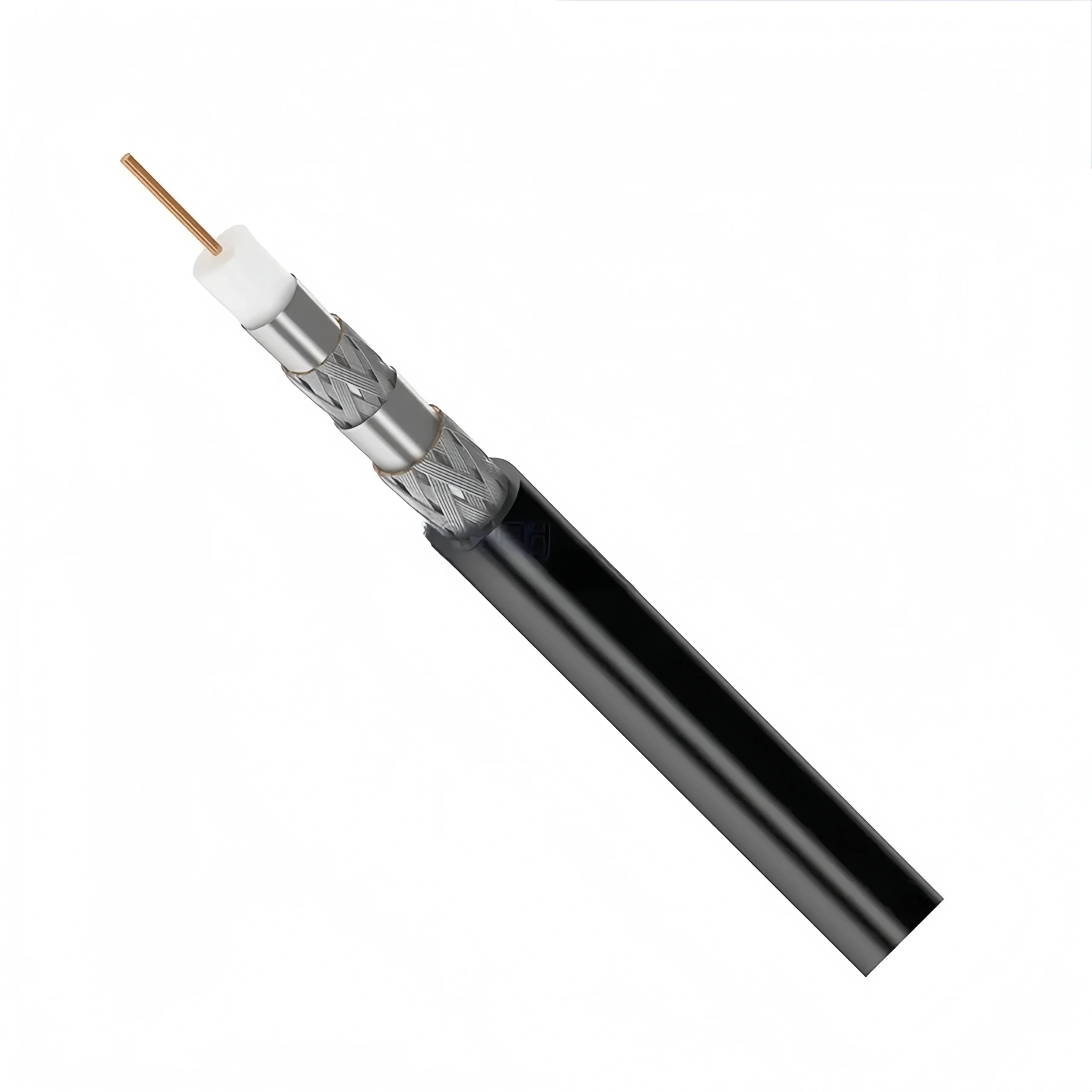

RG59 Quad Shield Jelly PE is a 75-ohm outdoor coaxial cable designed for CCTV, RF, and analog video applications. It features quad shielding for superior EMI/RFI protection, a jelly-filled core for moisture resistance, and a durable polyethylene (PE) jacket for direct burial and harsh environments. Ideal for long-distance, outdoor, and underground installations.

Additional information

Brand

National Wire Cable / OEM & ODM

Model

RG59 Q Jelly PE

Place of Origin

Guangdong, China

RG59 Quad Shield Jelly PE – 75-Ohm Coaxial Cable for Outdoor Applications

RG59 Quad Shield Jelly PE is a 75-ohm coaxial cable designed for CCTV, analog video, and RF applications, particularly in outdoor and underground environments. Featuring quad shielding for superior EMI/RFI protection, a solid bare copper (BC) conductor for excellent signal transmission, and a jelly-filled core with a polyethylene (PE) jacket for moisture resistance and durability, this cable is ideal for harsh environments, direct burial, and long-distance video transmission.

Key Features

1. 75-Ohm Impedance for High-Quality Signal Transmission

Optimized for CCTV surveillance, analog video, and RF distribution.
Provides low signal loss and stable transmission over long distances.
Compatible with BNC, RCA, and F-type connectors for flexible installations.

2. Quad Shielding for Maximum EMI/RFI Protection

Features two layers of aluminum foil and two layers of braided shielding to block external interference.
Ensures clear, uninterrupted signal transmission, even in high-interference environments.

3. Jelly-Filled Core for Moisture Resistance

Petroleum-based jelly filling protects the cable from water ingress and corrosion.
Ideal for underground, outdoor, and high-humidity installations.

4. Solid Bare Copper (BC) Conductor for Low Signal Loss

Bare copper conductor offers better conductivity and lower attenuation than CCA or CCS alternatives.
Ensures strong, reliable signal transmission for security and video applications.

5. Polyethylene (PE) Outer Jacket for Outdoor Durability

Weather-resistant PE jacket protects against UV rays, moisture, and extreme temperatures.
Provides high tensile strength and flexibility for outdoor routing.

Technical Specifications

Parameter	Specification
Conductor Material	Solid Bare Copper (BC)
Conductor Diameter	20 AWG – 22 AWG (0.81 mm – 0.64 mm)
Impedance	75 Ohms ± 3 Ohms

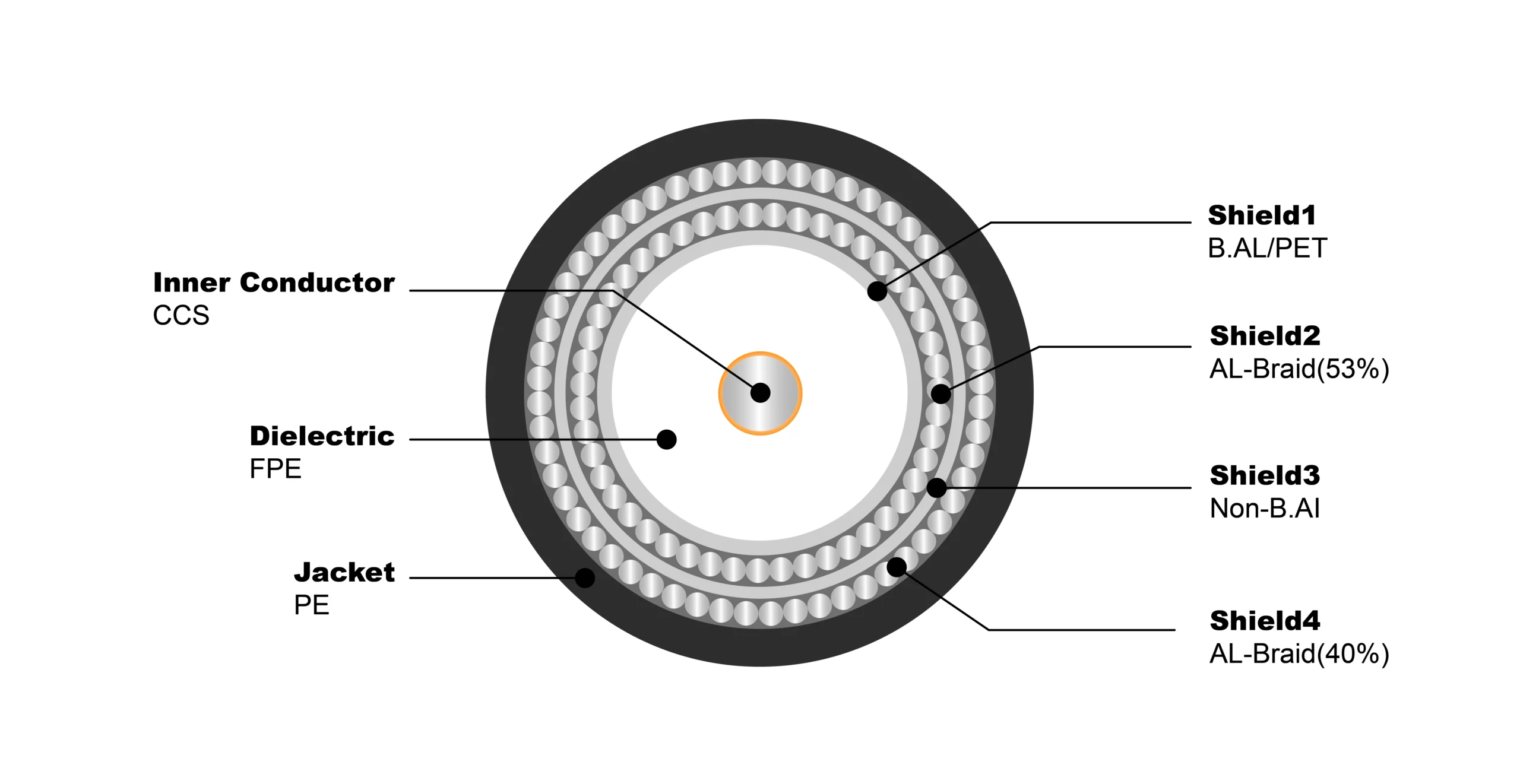

Shielding	Quad Shield (2 Foil + 2 Braided Layers)
Dielectric Material	Foam Polyethylene (FPE)
Jacket Material	Polyethylene (PE)
Core Protection	Jelly-Filled for Moisture Resistance
Outer Diameter	~6.15 mm (0.24 inches)
Frequency Range	Up to 1 GHz
Attenuation (Signal Loss)	~10.8 dB/100m @ 100 MHz
Operating Temperature	-40°C to +80°C (-40°F to +176°F)

Applications

✔ CCTV Security Systems – Ideal for outdoor and underground analog surveillance camera setups.
✔ Broadcast & Analog Video Transmission – Suitable for long-distance video and RF distribution.
✔ Direct Burial & Underground Installations – Jelly-filled core protects against water ingress.
✔ Harsh Environments – Designed for outdoor, high-humidity, and extreme temperature conditions.

Why Choose RG59 Quad Shield Jelly PE?

✅ Quad Shielding – Provides superior EMI/RFI protection for interference-free transmission.
✅ Jelly-Filled Core – Protects against moisture, corrosion, and water damage.
✅ Bare Copper Conductor – Ensures low attenuation and reliable signal quality.
✅ Durable PE Jacket – Designed for outdoor use, UV resistance, and underground installation.

Conclusion

RG59 Quad Shield Jelly PE is a rugged, moisture-resistant coaxial cable designed for outdoor, underground, and high-interference environments. With quad shielding for superior EMI/RFI protection, a bare copper conductor for optimal signal transmission, and a jelly-filled core with a PE jacket for maximum durability, it is an ideal choice for CCTV, RF, and long-distance video applications.
