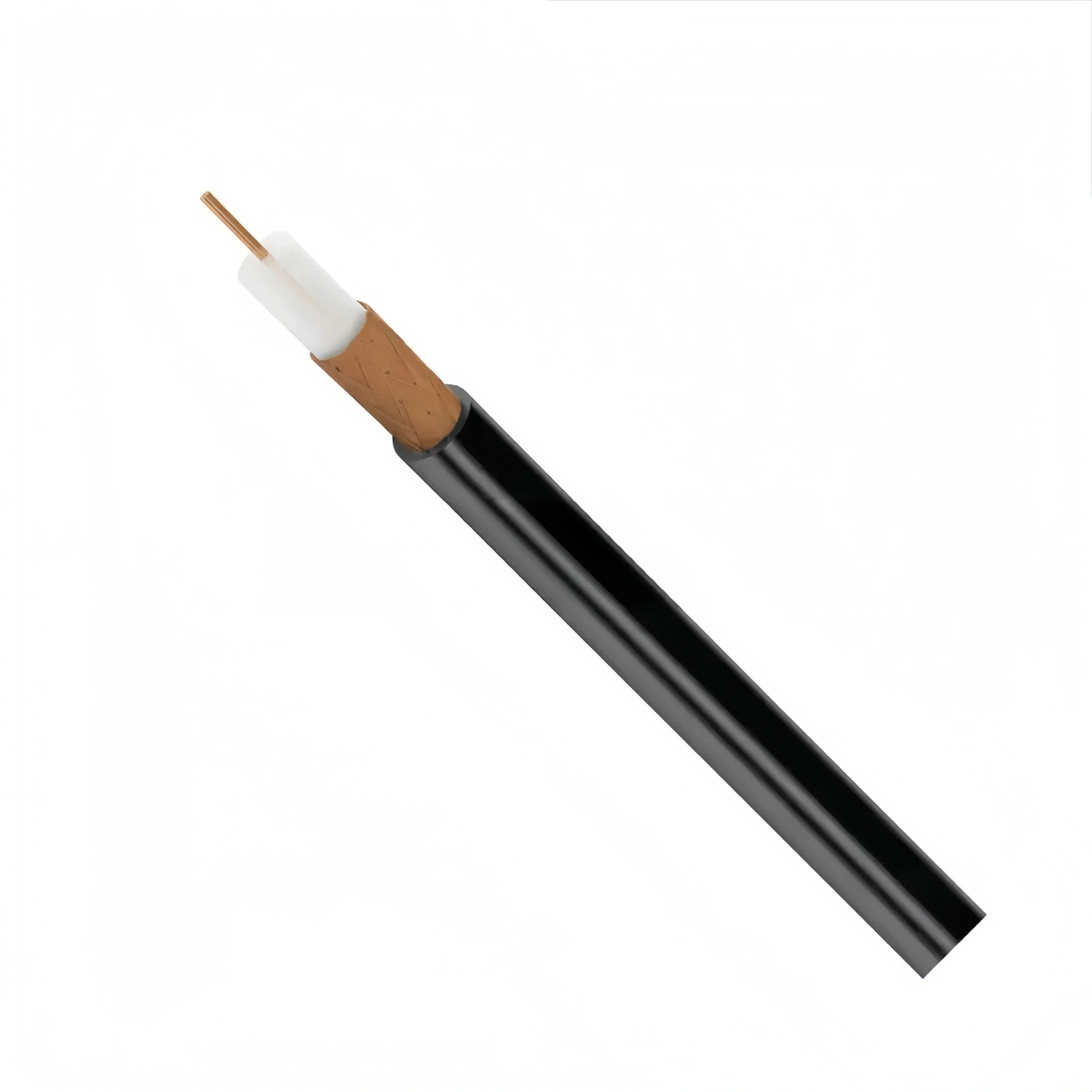

RG59 BC Single Shield CCA PVC – 75-Ohm Coaxial Cable for CCTV & RF Applications
RG59 BC Single Shield CCA PVC is a 75-ohm coaxial cable designed for CCTV, analog video, and RF applications, offering a balance between performance and cost-effectiveness. It features a bare copper (BC) core for superior signal transmission, CCA (Copper-Clad Aluminum) shielding for enhanced conductivity, and a durable PVC jacket for flexibility and protection. Ideal for short- to medium-range video and RF signal distribution, this cable is widely used in security systems, broadcast installations, and general A/V setups.
Key Features
1. 75-Ohm Impedance for Video & RF Transmission
- Optimized for CCTV surveillance, analog video, and RF signal distribution.
- Supports low- to mid-frequency ranges, ensuring stable signal performance.
- Compatible with BNC, RCA, and F-type connectors for various installation needs.
2. Bare Copper (BC) Core for Enhanced Conductivity
- Solid bare copper conductor provides low signal loss and high signal integrity.
- Ensures better performance than CCA conductors, particularly for long-distance applications.
3. CCA (Copper-Clad Aluminum) Shielding for Cost Efficiency
- Aluminum shielding with a copper-clad layer offers basic EMI/RFI protection.
- Reduces cost while maintaining adequate conductivity for CCTV and video applications.
4. Durable PVC Jacket for Protection & Flexibility
- Rugged PVC outer jacket enhances durability and resistance to abrasion and environmental factors.
- Provides flexibility for easy routing in commercial and residential installations.

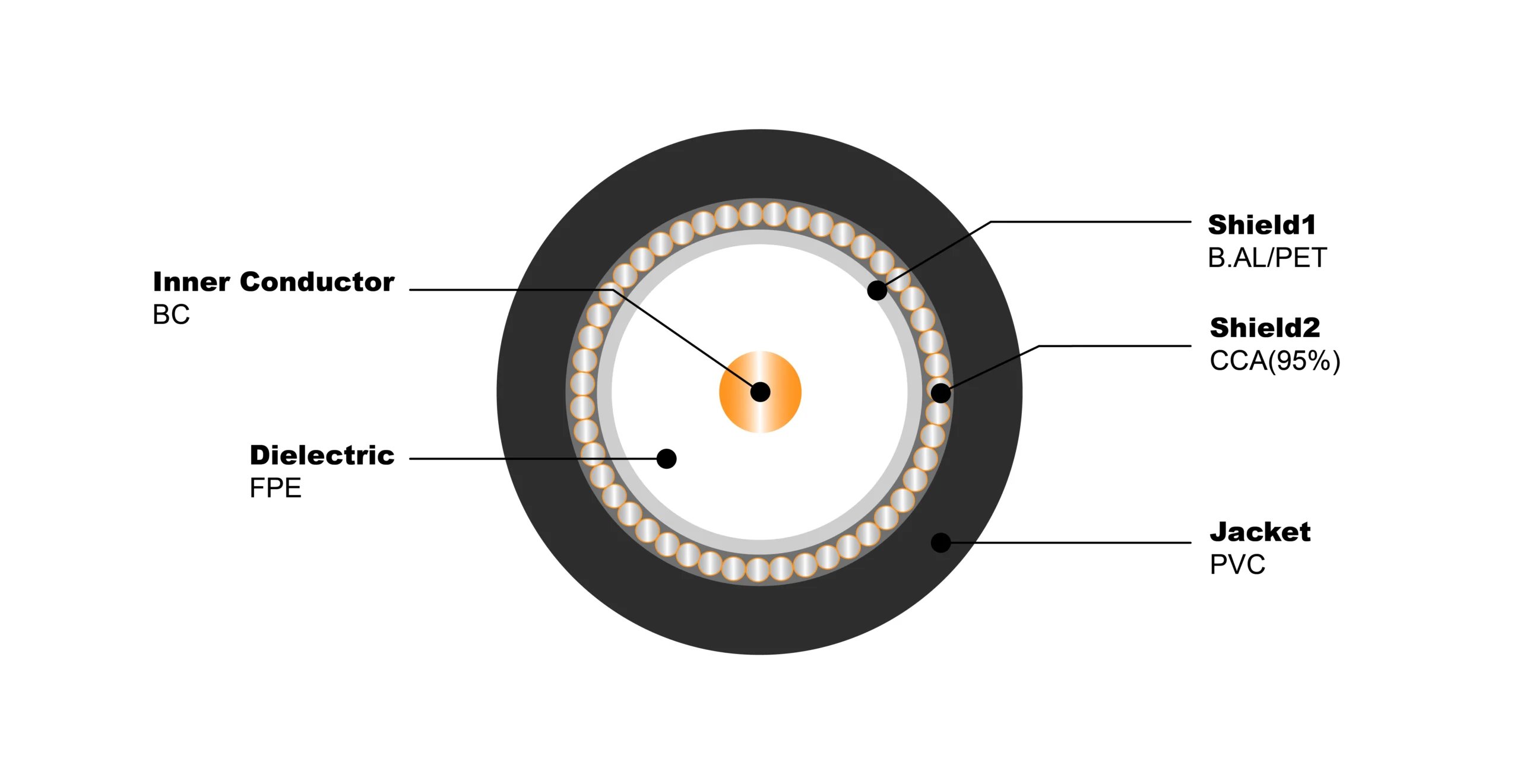

Technical Specifications
| Parameter | Specification |
| Conductor Material | Solid Bare Copper (BC) |
| Shielding Material | Copper-Clad Aluminum (CCA) |
| Impedance | 75 Ohms ± 3 Ohms |
| Dielectric Material | Solid Polyethylene (PE) or Foam PE |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Outer Diameter | ~6.15 mm (0.24 inches) |
| Frequency Range | Up to 1 GHz |
| Attenuation (Signal Loss) | ~10.8 dB/100m @ 100 MHz |
| Operating Temperature | -20°C to +75°C (-4°F to +167°F) |
| Fire Safety Compliance | IEC 60332-1, IEC 60754-1/2, IEC 61034 |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
Applications
✔ CCTV Surveillance Systems – Commonly used in analog security camera installations.
✔ Broadcast & Analog Video Transmission – Ideal for composite video signals and RF distribution.
✔ Home & Commercial A/V Systems – Suitable for TV, VCR, and satellite connections.
✔ Short-Distance RF Transmission – Supports RF signal distribution in CATV setups.
Why Choose RG59 BC Single Shield CCA PVC?
✅ Bare Copper Conductor – Ensures better signal quality and lower attenuation.
✅ Cost-Effective Solution – Combines BC performance with CCA shielding for affordability.
✅ Reliable for CCTV & RF Applications – Provides stable video and signal transmission.
✅ Durable & Flexible – PVC jacket allows easy installation and long-term reliability.
Conclusion
RG59 BC Single Shield CCA PVC is a versatile and cost-effective coaxial cable designed for CCTV, analog video, and RF applications. With a bare copper core for enhanced conductivity, CCA shielding for affordability, and a durable PVC jacket for flexibility, it is an ideal choice for short- to medium-range signal transmission in security, broadcasting, and A/V systems.
| Attenuation(20℃) | | |
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
| 5 | 0.86 | 2.82 |
| 55 | 2.05 | 6.73 |
| 83 | 2.45 | 8.04 |
| 187 | 3.6 | 11.81 |
| 211 | 3.8 | 12.47 |
| 250 | 4.1 | 13.45 |
| 300 | 4.45 | 14.60 |
| 350 | 4.8 | 15.75 |
| 400 | 5.1 | 16.73 |
| 450 | 5.4 | 17.72 |
| 500 | 5.7 | 18.70 |
| 550 | 5.95 | 19.52 |
| 600 | 6.2 | 20.34 |
| 750 | 6.97 | 22.87 |
| 865 | 7.52 | 24.67 |
| 1000 | 8.12 | 26.64 |
