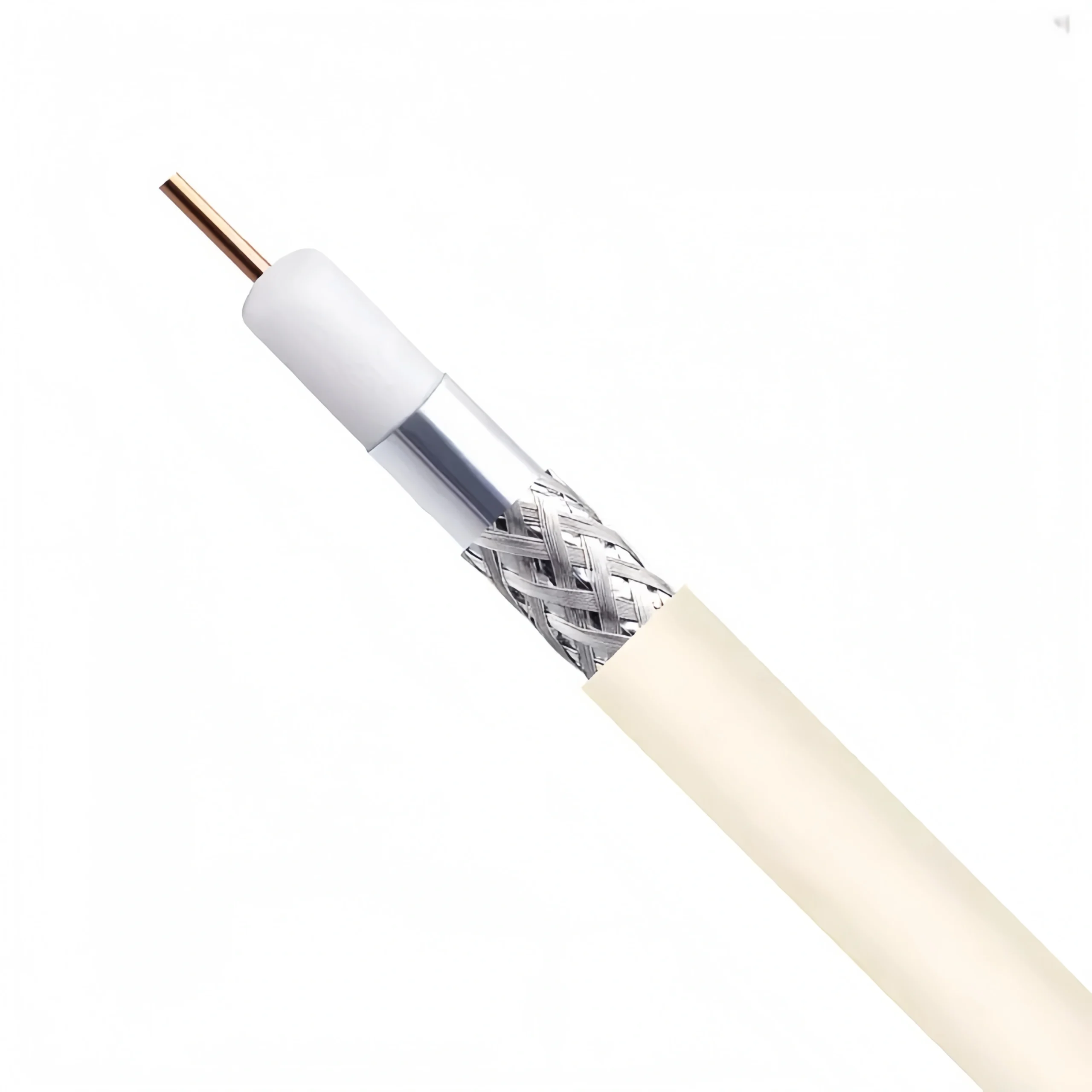

RG11/U S CMP Coaxial Cable is a plenum-rated, low-loss cable for CATV, broadband, and satellite applications. It features a solid copper conductor, strong shielding, and a flame-retardant jacket meeting NFPA 262 and UL 910 standards, ideal for air-handling spaces in commercial buildings.

Additional information

Brand

National Wire Cable / OEM & ODM

Model

RG11/U S CMP

Place of Origin

Guangdong, China

RG11/U S CMP Coaxial Cable

Overview

RG11/U S CMP coaxial cable is a high-performance, plenum-rated coaxial cable designed for broadband, video, and data signal transmission in commercial and industrial environments. It meets stringent CMP (Plenum) fire safety standards, making it suitable for installation in air-handling spaces such as ceilings and raised floors. The cable features a large conductor size for low signal loss and is commonly used for CATV, satellite TV, and long-distance video distribution applications.

Key Features

✔ Plenum-Rated (CMP) – Complies with NFPA 262 fire resistance standards, suitable for use in air-handling spaces.
✔ Superior Signal Transmission – Low attenuation and high signal integrity over long distances.
✔ Shielded Design – Provides enhanced protection against electromagnetic interference (EMI) and radio frequency interference (RFI).
✔ Durable Construction – Designed to withstand environmental factors such as temperature fluctuations and mechanical stress.
✔ High-Frequency Support – Ideal for broadband applications requiring high bandwidth and low signal degradation.

Technical Specifications

Parameter Specification

Cable Type RG11/U S CMP

Conductor Solid bare copper

Conductor Size 14 AWG (2.05mm)

Dielectric Foamed polyethylene (FPE)

Shielding Aluminum foil + 100% braided aluminum

Jacket Material Low-smoke, flame-retardant plenum PVC

Jacket Rating CMP (Plenum)

Impedance 75Ω ± 3Ω

Capacitance ≈ 17 pF/ft

Velocity of Propagation 80% - 85%

Operating Frequency Up to 3 GHz

Attenuation @ 1 GHz ~6.5 dB/100m

Temperature Range -40°C to +75°C

Operating Temperature -20°C to 75°C

Compliance UL CM, RoHS, REACH

Applications

🔹 CATV & Satellite TV Distribution – Used for commercial and residential cable television systems.
🔹 Broadband & Internet Services – Supports high-speed data transmission over long distances.
🔹 Security & Surveillance – Suitable for CCTV and HD video signal transmission.
🔹 Professional Audio/Video Systems – Used in broadcasting and high-definition AV setups.
🔹 Plenum Spaces – Ideal for use in buildings with stringent fire safety regulations.

Conclusion

RG11/U S CMP coaxial cable is a premium-grade solution for professional video, broadband, and RF applications, especially in environments requiring plenum-rated cables. With its low attenuation, excellent shielding, and fire-resistant jacket, this cable ensures reliable signal transmission and long-term durability in critical installations.

Attenuation(20℃)
Frequency (MHZ)	Max Attenuation(dB/100ft)	Max Attenuation (dB/100m)
1	0.25	0.82
10	0.8	2.62
50	1.2	3.93
100	1.7	5.57
200	2.5	8.2
400	3.6	11.8
700	5.1	16.72
900	6	19.67
1000	6.5	21.31
1450	8	26.23
1800	9.1	29.84
2200	10.1	33.11
3000	12	39.34
