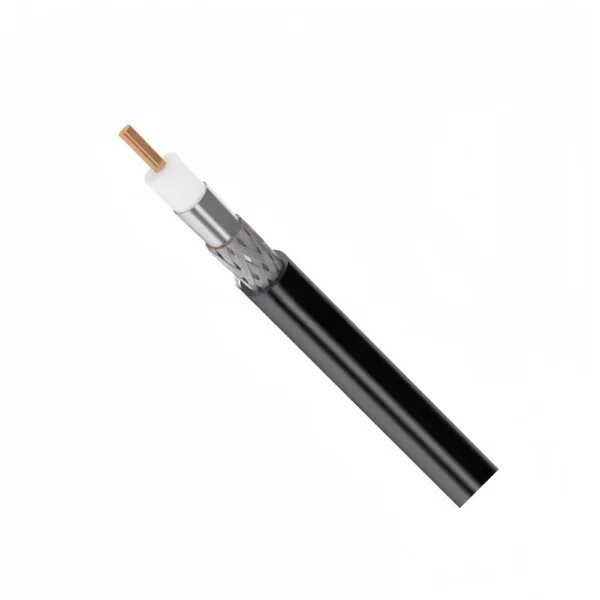

RG11 S PVC CM coaxial cable is a high-performance, shielded (S) cable with a CM-rated PVC jacket for safe indoor commercial use. It features a low-loss 75-ohm design, a solid conductor, and double shielding (aluminum braid + foil) for excellent EMI protection. Ideal for long-distance CATV, satellite TV, CCTV, and broadband applications, it ensures reliable signal transmission with minimal attenuation.
| Brand | National Wire Cable / OEM & ODM |
|---|---|
| Model | RG11 S PVC CM |
| Place of Origin | Guangdong, China |
| Categories | Coaxial Cable |
| Impedance | 75 ohm |
| Length | 100m, 305m,500m,1000ft |
| Packing | Roll, Wooden Spool, Carton, Pallet |
| Delivery Time | Normally 15 working days |

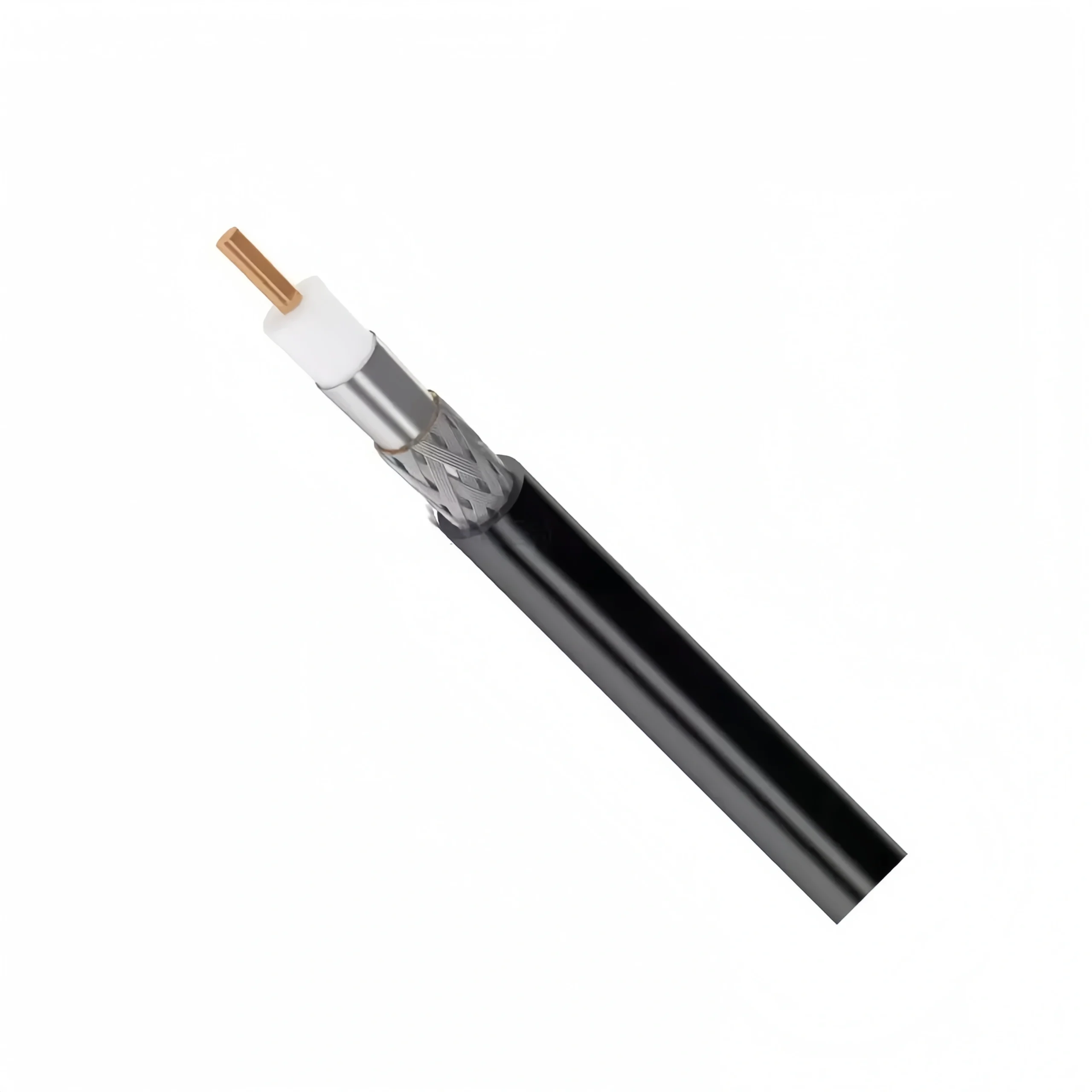

RG11 S PVC CM coaxial cable is a high-performance, low-loss cable designed for high-frequency signal transmission applications. It features a solid conductor for minimal signal attenuation, a shielded (S) design for enhanced electromagnetic interference (EMI) protection, and a PVC CM-rated jacket for safe indoor installation in commercial buildings.

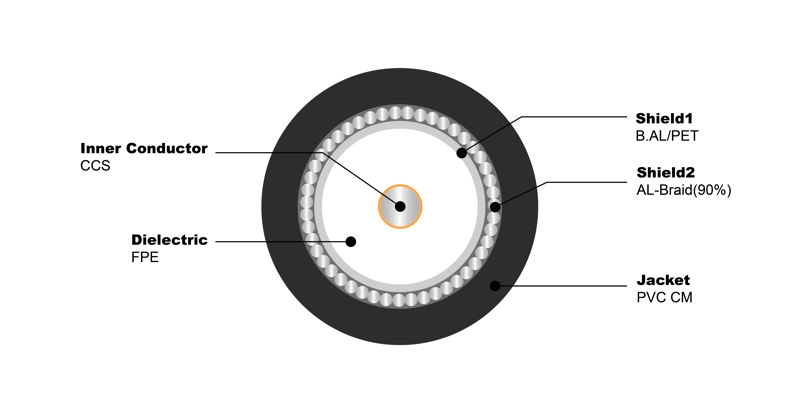

| Parameter | Specification |
|---|---|
| Cable Type | RG11 S PVC CM |
| Conductor Material | Copper / Copper-Clad Steel (CCS) |
| Conductor Diameter | 1.63 mm (±0.02 mm) |
| Dielectric Material | Foam Polyethylene (FPE) |
| Dielectric Diameter | Approx. 7.11 mm |
| Shielding | Aluminum Braid + Aluminum Foil (100% Coverage) |
| Braid Coverage | 60%-90% (depending on specification) |
| Jacket Material | PVC (CM-rated) |
| Jacket Thickness | Approx. 1.0 mm |
| Overall Diameter | 10.3 mm - 10.8 mm |
| Impedance | 75 Ohms |
| Capacitance | 53 pF/m |
| Attenuation (dB/100m at 1000 MHz) | Approx. 12.7 dB |
| Operating Temperature | -20°C to 75°C |
| Compliance | UL CM, RoHS, REACH |
RG11 S PVC CM coaxial cable is an excellent choice for long-distance, high-frequency applications where low attenuation and strong EMI protection are required. Its shielded design and CM-rated PVC jacket make it ideal for safe indoor commercial installations.
| Attenuation(20℃) | ||
|---|---|---|
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
| 5 | 0.38 | 1.25 |
| 55 | 0.96 | 3.15 |
| 83 | 1.18 | 3.87 |
| 187 | 1.75 | 5.74 |
| 211 | 1.90 | 6.23 |
| 250 | 2.05 | 6.72 |
| 300 | 2.25 | 7.38 |
| 350 | 2.42 | 7.94 |
| 400 | 2.60 | 8.53 |
| 450 | 2.75 | 9.02 |
| 500 | 2.90 | 9.51 |
| 550 | 3.04 | 9.97 |
| 600 | 3.18 | 10.43 |
| 750 | 3.65 | 11.97 |
| 865 | 3.98 | 13.05 |
| 1000 | 4.35 | 14.27 |
